4056 Axial Series A

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTH4056H12BTwo Ball127.0 to 13.81.3115.7219000/1560029.671.17263.0
ICTH4056X12BTwo Ball127.0 to 13.82.3928.6823000/1870035.924.14168.5

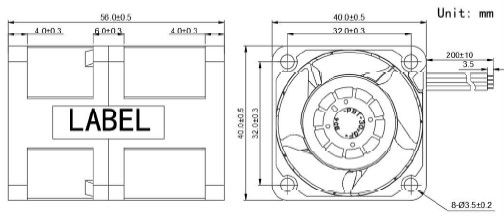

Dimension Drawing

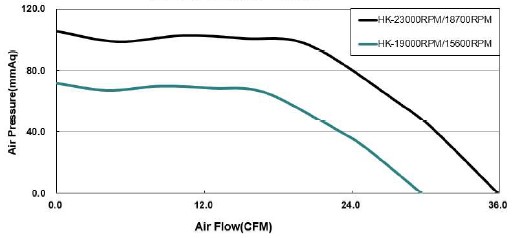

PQ Curve

4056A 4056B
