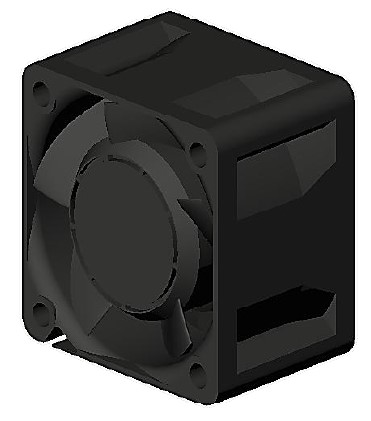

4028 Axial Series X

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTP4028L12BTwo Ball127~13.20.627.441800023.754.5256.9
ICTP4028M12BTwo Ball127~13.21.0512.62100027.5573.3159.8
ICTP4028H12BTwo Ball127~13.21.416.82500033.6399.1263.8
ICTP4028X12BTwo Ball127~13.22.327.63000041.34146.8969.5

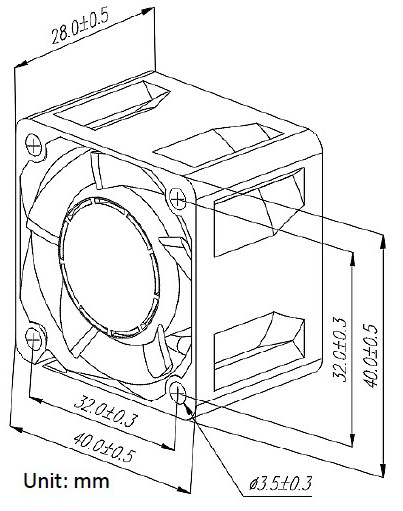

Dimension Drawing

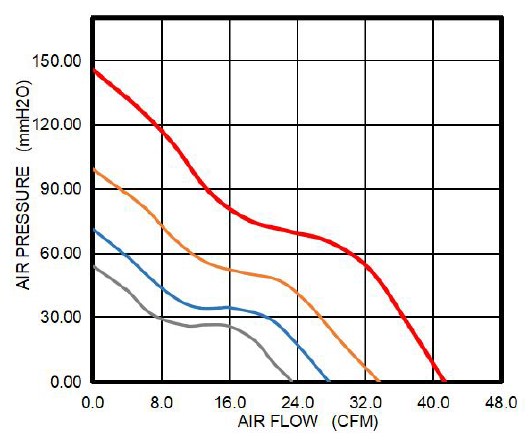

PQ Curve

dim a4028 pq a4028
