4028 Axial Series A2
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTH4028BX12B | Two Ball | 12 | 7.0 to 13.8 | 1.00 | 12.0 | 21000 | 27.15 | 2.699 | 60.5 |
| ICTH4028BY12B | Two Ball | 12 | 7.0 to 13.8 | 1.30 | 15.6 | 24000 | 31.02 | 3.525 | 63.5 |
| ICTH4028BZ12B | Two Ball | 12 | 7.0 to 13.8 | 2.00 | 24.0 | 27000 | 34.90 | 4.462 | 66.5 |
| ICTH4028BP12B | Two Ball | 12 | 7.0 to 13.8 | 2.25 | 27.0 | 30000 | 38.78 | 5.508 | 69.5 |
Dimension Drawing |

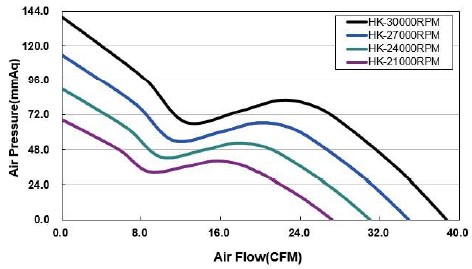

PQ Curve |
 |
 |
