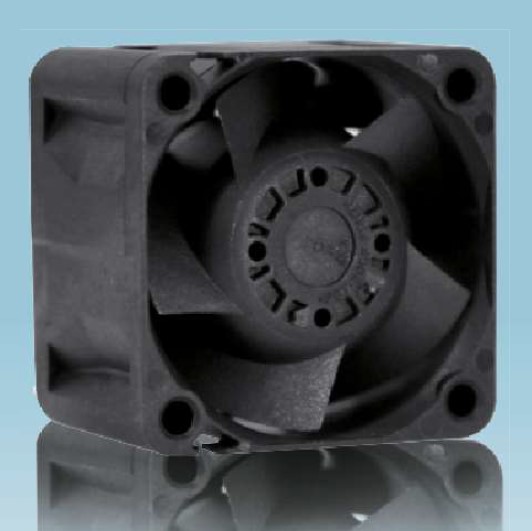

4028 Axial Series A1
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTH4028AL12B | Two Ball | 12 | 7.0 to 13.8 | 0.10 | 1.20 | 9000 | 12.15 | 0.52 | 42.5 |
| ICTH4028AM12B | Two Ball | 12 | 7.0 to 13.8 | 0.19 | 2.28 | 12000 | 16.20 | 0.925 | 48.5 |
| ICTH4028AH12B | Two Ball | 12 | 7.0 to 13.8 | 0.33 | 3.96 | 15000 | 20.25 | 1.445 | 53.5 |
| ICTH4028AX12B | Two Ball | 12 | 7.0 to 13.8 | 0.49 | 5.88 | 18000 | 24.30 | 2.081 | 57.5 |
| ICTH4028AY12B | Two Ball | 12 | 7.0 to 13.8 | 0.68 | 8.16 | 20000 | 27.00 | 2.569 | 59.5 |
| ICTH4028AZ12B | Two Ball | 12 | 7.0 to 13.8 | 0.92 | 11.04 | 22000 | 29.70 | 3.108 | 62.0 |
| ICTH4028AP12B | Two Ball | 12 | 7.0 to 13.8 | 1.30 | 15.60 | 25000 | 33.75 | 4.013 | 64.5 |

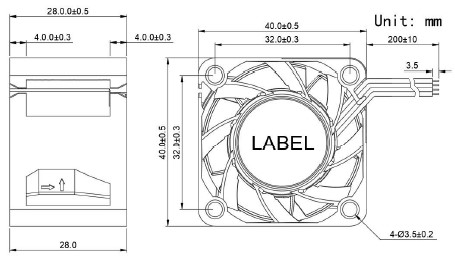

Dimension Drawing |

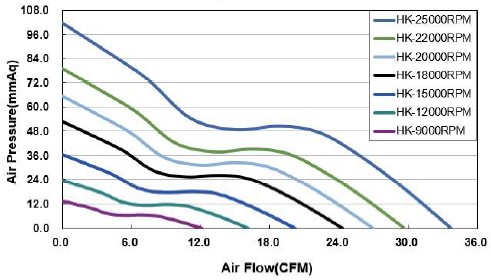

PQ Curve |
 |
 |
