4020 Blower Series A

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTN4020M12BTwo Ball125.0 to 13.80.101.250002.560.19335.8
ICTN4020H12BTwo Ball125.0 to 13.80.161.9260002.880.27841.4

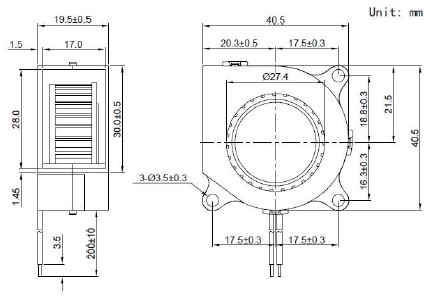

Dimension Drawing

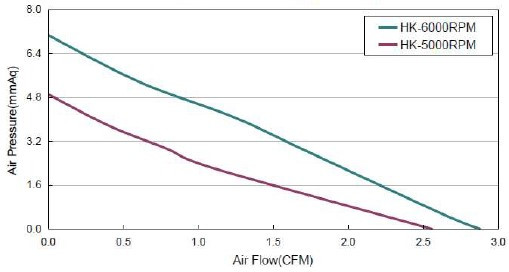

PQ Curve

B4020A B4020B
