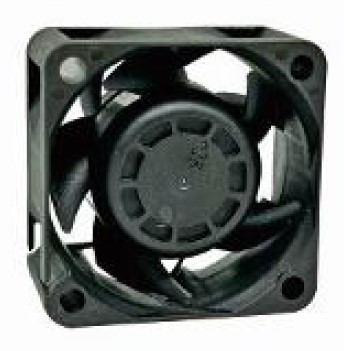

4020 Axial Series Y2
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY4020BP12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.5 | 6 | 16500 | 19.42 | 27.49 | 49.8 |
| ICTY4020BZ12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.32 | 3.84 | 14000 | 16.48 | 19.79 | 46.2 |
| ICTY4020BY12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.24 | 2.88 | 12000 | 14.13 | 14.54 | 42.9 |
| ICTY4020BX12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.18 | 2.16 | 10000 | 11.77 | 10.1 | 38.9 |
| ICTY4020BY24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.16 | 3.84 | 13000 | 15.3 | 17.06 | 44.6 |
| ICTY4020BX24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.1 | 2.4 | 10000 | 11.77 | 10.1 | 38.9 |
