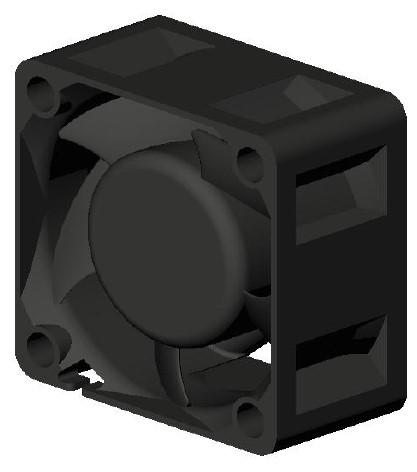

4020 Axial Series X

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTP4020L12BTwo Ball127~13.20.091.0875009.118.1332.3
ICTP4020M12BTwo Ball127~13.20.11.21000012.1413.4439.8
ICTP4020H12BTwo Ball127~13.20.22.41300015.7922.7146.6
ICTP4020L12FFDB127~13.20.091.0875009.118.1332.3
ICTP4020M12FFDB127~13.20.11.21000012.1413.4439.8
ICTP4020H12FFDB127~13.20.22.41300015.7922.7146.6

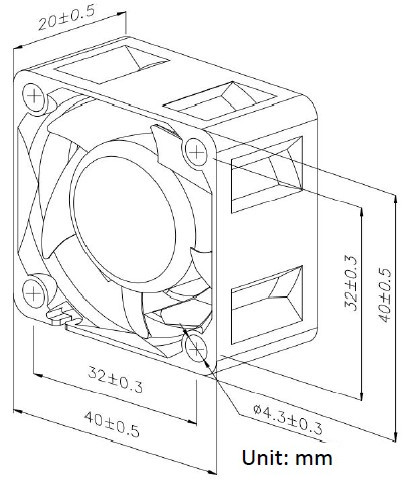

Dimension Drawing

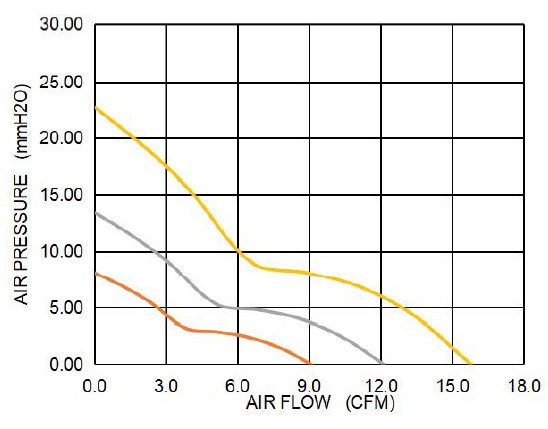

PQ Curve

dim a4020 pq a4020
