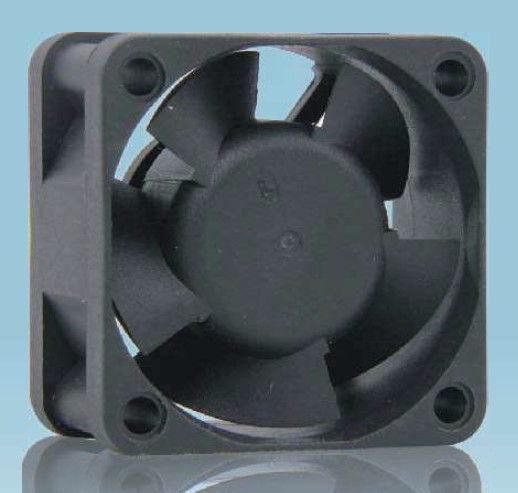

4020 Axial Series A1
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTH4020AL12S | Sleeve | 12 | 5.0 to 13.8 | 0.06 | 0.72 | 6500 | 7.01 | 0.22 | 25.8 |
| ICTH4020AM12S | Sleeve | 12 | 5.0 to 13.8 | 0.09 | 1.08 | 8000 | 9.76 | 0.307 | 31 |
| ICTH4020AH12S | Sleeve | 12 | 5.0 to 13.8 | 0.14 | 1.68 | 10000 | 10.8 | 0.485 | 37.9 |

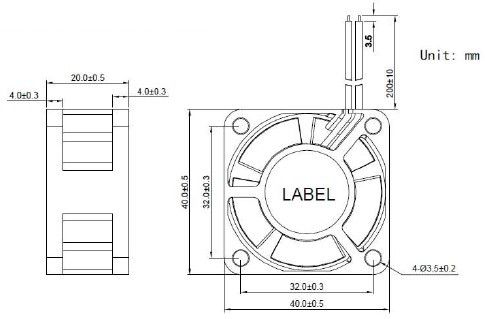

Dimension Drawing |

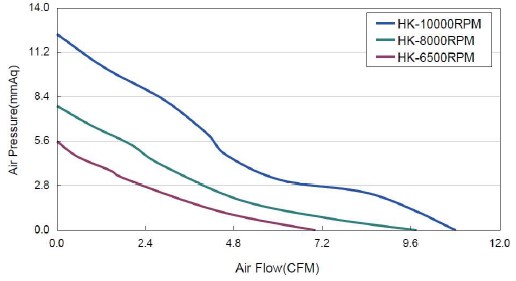

PQ Curve |
 |
 |
