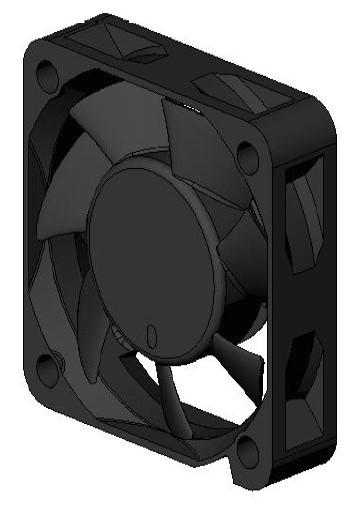

4010 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTP4010L12F | FDB | 12 | 7～13.2 | 0.09 | 1.08 | 7000 | 8.53 | 5.62 | 28.7 |
| ICTP4010M12F | FDB | 12 | 7～13.2 | 0.1 | 1.2 | 10000 | 12.31 | 10.93 | 37.6 |
| ICTP4010H12F | FDB | 12 | 7～13.2 | 0.2 | 2.4 | 12000 | 14.9 | 15.8 | 42.3 |

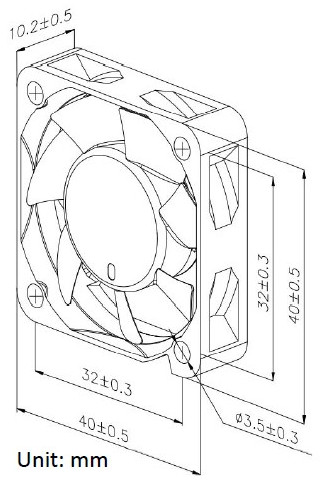

Dimension Drawing |

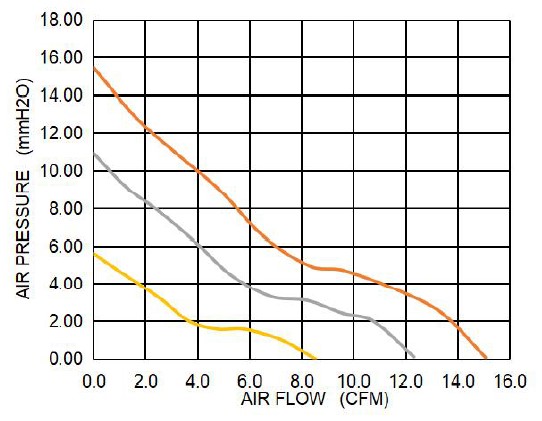

PQ Curve |
 |
 |
