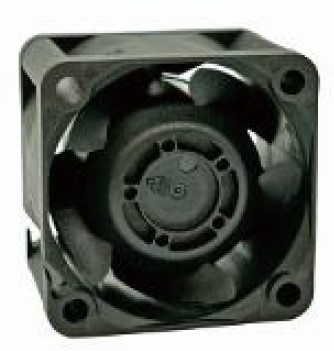

3828 Axial Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY3828Z12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.03 | 12.36 | 23500 | 22.05 | 81.56 | 61.4 |
| ICTY3828Y12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.77 | 9.24 | 21000 | 19.7 | 62.12 | 59 |
| ICTY3828X12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.5 | 6 | 18000 | 16.89 | 47.85 | 55.6 |
| ICTY3828H12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.33 | 3.96 | 15000 | 14.07 | 33.22 | 51.7 |
| ICTY3828M12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.22 | 2.64 | 12000 | 11.26 | 21.26 | 46.8 |
| ICTY3828L12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.12 | 1.44 | 9000 | 8.44 | 11.96 | 40.6 |
| ICTY3828H24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.15 | 3.6 | 13000 | 12.19 | 24.95 | 48.5 |
| ICTY3828M24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.11 | 2.64 | 10000 | 9.38 | 14.76 | 42.9 |
| ICTY3828L24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.09 | 2.16 | 8000 | 7.5 | 9.45 | 38 |
