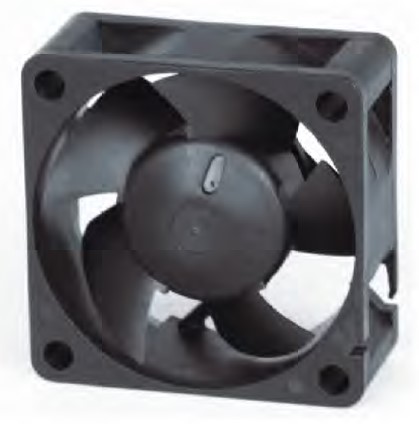

3515 Axial Fan Basic

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
MODELBearing Type Rated Voltage
(VDC)
Operating Voltage Range
(VDC)
Rated Current
(Amp)
Rated input Power
(Watt)
Rated Speed
(R.P.M.)
Maximum Air Flow
(CFM)
Maximum Air Pressure
(mmH2O)
Noise
(dB-A)
ICTA3515L05BTwo Ball54.5 ~ 5.50.201.0070005.203.1827.50
ICTA3515L12BTwo Ball127 ~ 13.80.101.2070005.203.1827.50
ICTA3515M05BTwo Ball54.5 ~ 5.50.251.2590006.253.8232.50
ICTA3515M12BTwo Ball127 ~ 13.80.151.8090006.253.8232.50
ICTA3515H12BTwo Ball127 ~ 13.80.182.16100006.944.2536.00

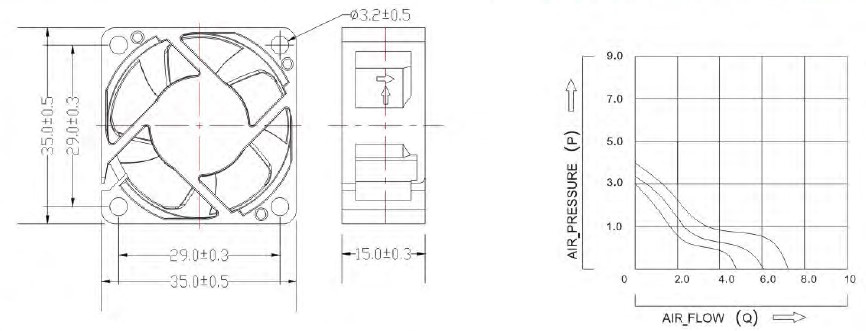

Dimension Drawing

dim A3515
