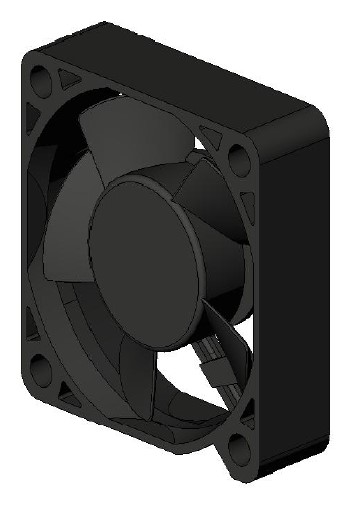

3510 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTP3510L12F | FDB | 12 | 7～13.2 | .07 | 0.84 | 5000 | 3.46 | 2.15 | 23.6 |
| ICTP3510M12F | FDB | 12 | 7～13.2 | .09 | 1.08 | 6000 | 4.16 | 2.15 | 24.7 |
| ICTP3510H12F | FDB | 12 | 7～13.2 | 0.1 | 1.2 | 7500 | 5.38 | 3.37 | 27.4 |

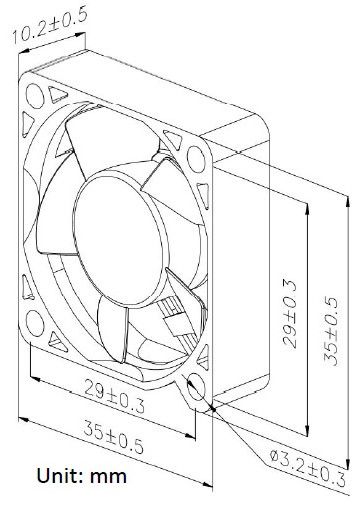

Dimension Drawing |

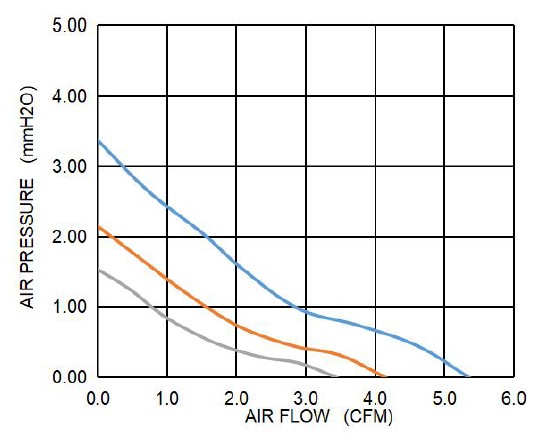

PQ Curve |
 |
 |
