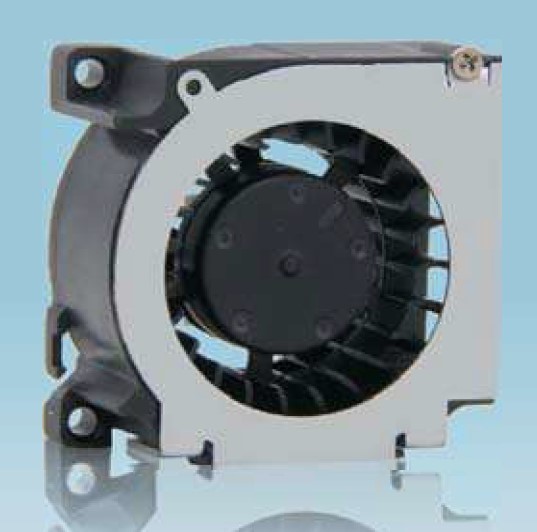

3015 Blower Series A

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTN3015M05BTwo Ball54.0 to 5.50.121.4450001.790.20022.5
ICTN3015H05BTwo Ball54.0 to 5.50.182.1660002.360.25926.9

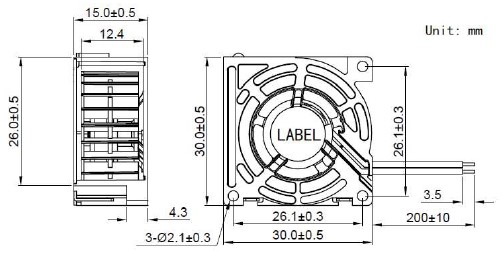

Dimension Drawing

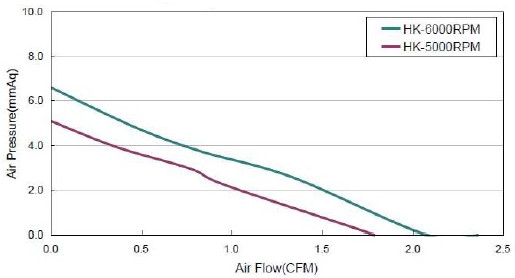

PQ Curve

B3015A B3015B
