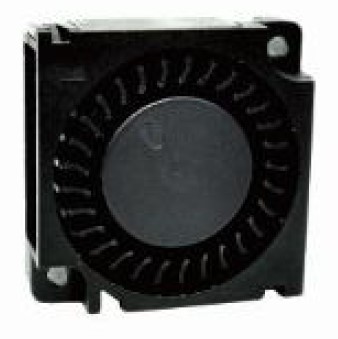

3010 Blower Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTV3010H05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.21 | 1.05 | 10500 | 1.48 | 10.14 | 36.4 |
| ICTV3010M05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.17 | 0.85 | 8000 | 1.13 | 5.88 | 30.5 |
| ICTV3010L05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.1 | 0.5 | 6000 | 0.85 | 3.31 | 24.2 |
| ICTV3010H12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.12 | 1.44 | 11000 | 1.55 | 11.13 | 37.4 |
| ICTV3010M12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.09 | 1.08 | 8000 | 1.13 | 5.88 | 30.5 |
| ICTV3010L12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.06 | 0.72 | 6000 | 0.85 | 3.31 | 24.2 |
| ICTV3010H05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.21 | 1.05 | 10500 | 1.48 | 10.14 | 36.4 |
| ICTV3010M05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.17 | 0.85 | 8000 | 1.13 | 5.88 | 30.5 |
| ICTV3010L05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.1 | 0.5 | 6000 | 0.85 | 3.31 | 24.2 |
| ICTV3010H12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.12 | 1.44 | 11000 | 1.55 | 11.13 | 37.4 |
| ICTV3010M12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.09 | 1.08 | 8000 | 1.13 | 5.88 | 30.5 |
| ICTV3010L12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.06 | 0.72 | 6000 | 0.85 | 3.31 | 24.2 |
