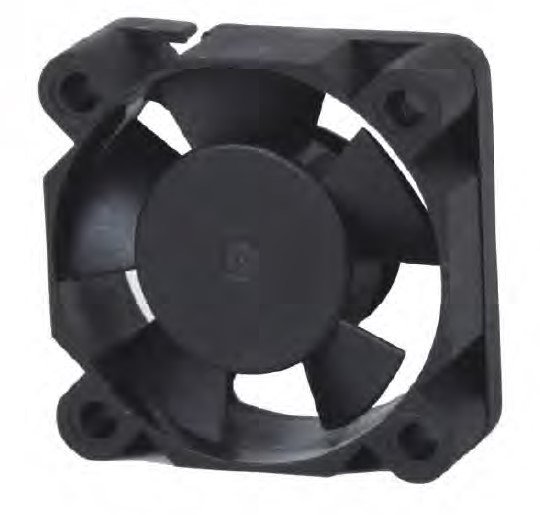

3010 Axial Fan Basic

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
MODELBearing Type Rated Voltage
(VDC)
Operating Voltage Range
(VDC)
Rated Current
(Amp)
Rated input Power
(Watt)
Rated Speed
(R.P.M.)
Maximum Air Flow
(CFM)
Maximum Air Pressure
(mmH2O)
Noise
(dB-A)
ICTA3010L05SSleeve54.5 ~ 5.50.070.3550001.360.9519.0
ICTA3010L12SSleeve127 ~ 13.80.06 0.7250001.360.9519.0
ICTA3010M05SSleeve54.5 ~ 5.50.080.4065002.371.1021.5
ICTA3010M12SSleeve127 ~ 13.80.07 0.8465002.371.1021.5
ICTA3010H05BTwo Ball54.5 ~ 5.50.201.0080003.151.5523.4
ICTA3010H12BTwo Ball127 ~ 13.80.091.0880003.151.5523.4
ICTA3010X05BTwo Ball54.5 ~ 5.50.170.85100003.951.9325.5
ICTA3010X12BTwo Ball127 ~ 13.80.101.20100003.951.9325.5
ICTA3010Y05BTwo Ball54.5 ~ 5.50.221.10130005.562.5126.9
ICTA3010Y12BTwo Ball127 ~ 13.80.121.44130005.562.5126.9

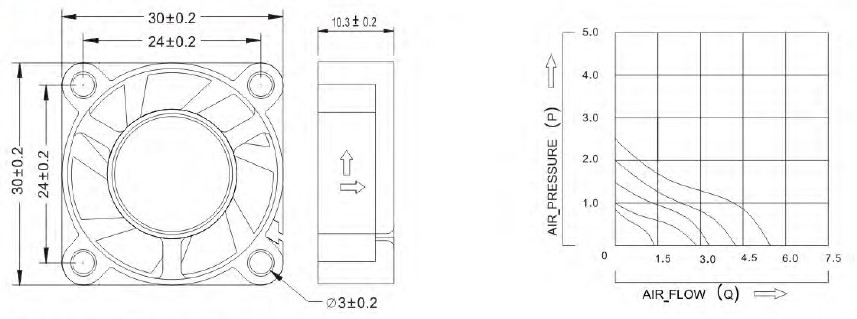

Dimension Drawing

dim A3010 2
