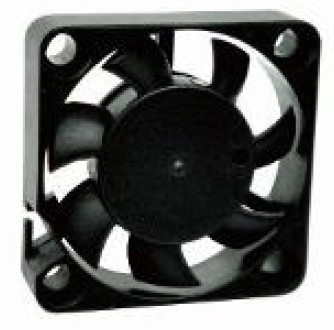

3007 Axial Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY3007H05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.16 | 0.8 | 11000 | 3.64 | 5.21 | 31.97 |
| ICTY3007M05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.09 | 0.45 | 8500 | 2.81 | 3.11 | 26.37 |
| ICTY3007L05C | CycleSeal | 5 | 4.5 ~ 5.5 | 0.05 | 0.25 | 6000 | 1.98 | 1.55 | 18.81 |
| ICTY3007H12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.07 | 0.84 | 11000 | 3.64 | 5.21 | 31.97 |
| ICTY3007M12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.05 | 0.6 | 8500 | 2.81 | 3.11 | 26.37 |
| ICTY3007L12C | CycleSeal | 12 | 7.0 ~ 13.8 | 0.04 | 0.48 | 6000 | 1.98 | 1.55 | 18.81 |
