3003 Blower Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTP3003L5F | FDB | 5 | 3.5～5.5 | 0.1 | 0.5 | 9500 | 0.69 | 8.78 | 34.1 |
| ICTP3003M5F | FDB | 5 | 3.5～5.5 | 0.15 | 0.75 | 12500 | 0.96 | 16.18 | 41.4 |
| ICTP3003H5F | FDB | 5 | 3.5～5.5 | 0.25 | 1.25 | 15500 | 1.24 | 28.96 | 47.8 |

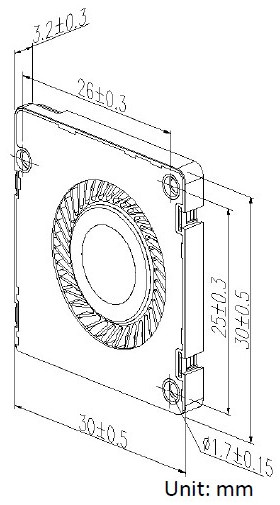

Dimension Drawing |

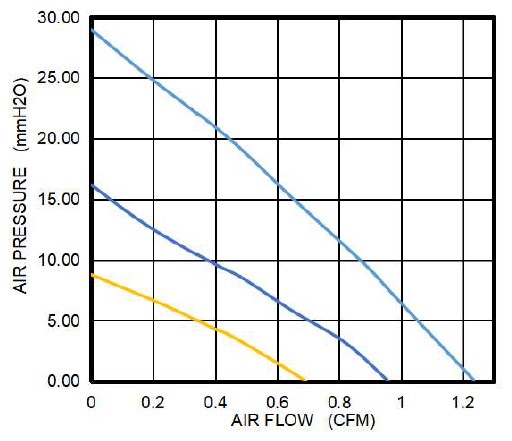

PQ Curve |
 |
 |
