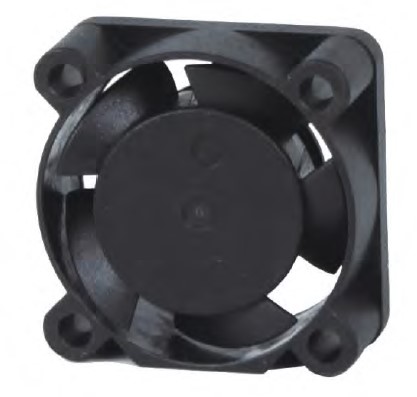

2510 Axial Fan Basic
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTA2510L05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.09 | 0.45 | 7000 | 1.21 | 2.18 | 19.60 |
| ICTA2510L12B | Two Ball | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 7000 | 1.21 | 2.18 | 19.60 |
| ICTA2510M05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.13 | 0.65 | 10000 | 1.99 | 4.48 | 22.80 |
| ICTA2510M12B | Two Ball | 12 | 7 ~ 13.8 | 0.05 | 0.60 | 10000 | 1.99 | 4.48 | 22.80 |
| ICTA2510H05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.17 | 0.85 | 12000 | 2.38 | 7.37 | 25.20 |
| ICTA2510H12B | Two Ball | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 12000 | 2.38 | 7.37 | 25.20 |
| ICTA2510X05B | Two Ball | 5 | 4.5 ~ 5.5 | 0.23 | 1.15 | 15000 | 2.98 | 7.98 | 28.90 |
| ICTA2510X12B | Two Ball | 12 | 7 ~ 13.8 | 0.12 | 1.44 | 15000 | 2.98 | 7.98 | 28.90 |

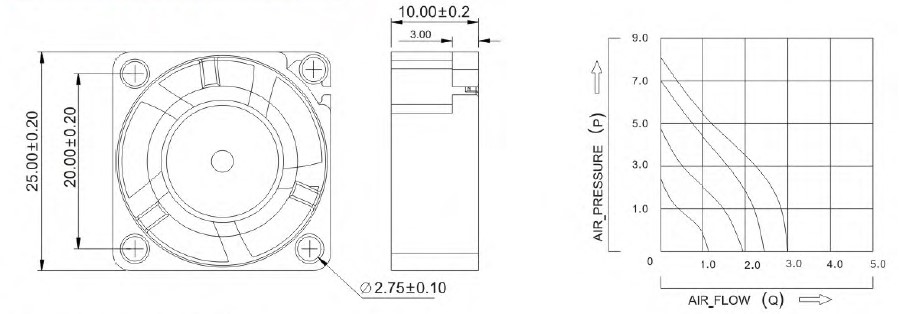

Dimension Drawing
