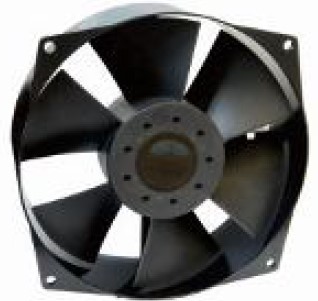

21072 Axial Series YA
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage Range (VAC) | Rated Current (Amp) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|
| ICTU21072H11B | Two Ball | 100-125 | 0.40/0.50 | 2600/3000 | 459/529 | 48.0/58.0 | 70/75 |
| ICTU21072H22B | Two Ball | 220-240 | 0.24/0.28 | 2600/3000 | 459/529 | 48.0/58.0 | 70/75 |
