2006 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
![Fan Cert 1](https://www.iceberg-thermal.com/wp-content/uploads/2021/10/Fan_Cert-1.png)
![A2007 A2007](https://www.iceberg-thermal.com/wp-content/uploads/2021/12/A2007.jpg)
Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
---|---|---|---|---|---|---|---|---|---|
ICTP2006L05F | FDB | 5 | 3.5~5.5 | 0.05 | 0.25 | 6000 | 0.23 | 0.85 | 19.5 |
ICTP2006H05F | FDB | 5 | 3.5~5.5 | 0.2 | 1 | 18000 | 1.73 | 9.05 | 40.8 |

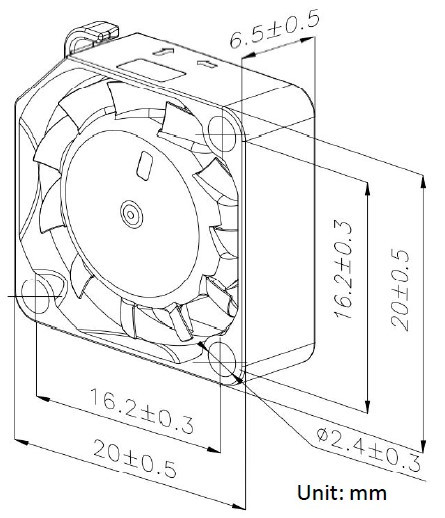

Dimension Drawing |

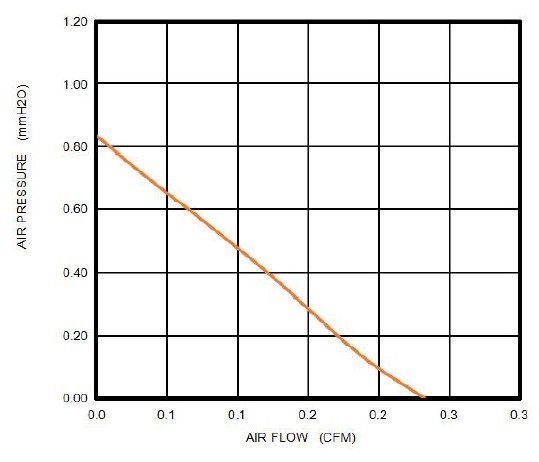

PQ Curve |
![]() |
![]() |
