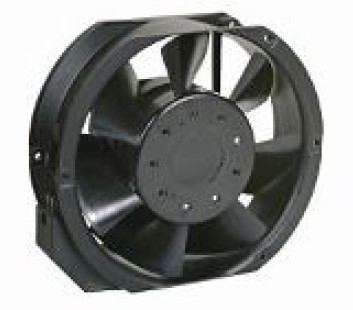

17251 Axial Series YA3
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage Range (VAC) | Rated Current (Amp) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|
| ICTU17251CH11B | Two Ball | 100-125 | 0.35/0.40 | 2800/3200 | 250/293 | 16.0/20.0 | 56/61 |
| ICTU17251CH22B | Two Ball | 220-240 | 0.20/0.21 | 2800/3200 | 250/293 | 16.0/20.0 | 56/61 |
| ICTU17251CM11B | Two Ball | 100-125 | 0.26/0.29 | 2400/2300 | 200/191 | 12.0/11.0 | 51/50 |
| ICTU17251CM22B | Two Ball | 220-240 | 0.16/0.17 | 2400/2300 | 200/191 | 12.0/11.0 | 51/50 |
