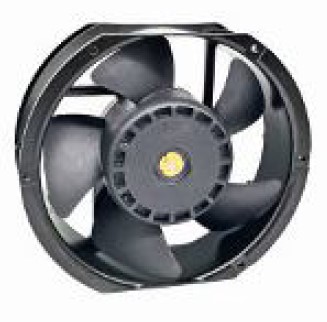

17251 Axial Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY17251X24B | Two Ball | 24 | 14.0 ~ 27.6 | 2.5 | 60 | 4000 | 382.66 | 37.69 | 62.3 |
| ICTY17251H24B | Two Ball | 24 | 14.0 ~ 27.6 | 1.63 | 39.12 | 3500 | 324.9 | 27.17 | 58.8 |
| ICTY17251M24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.84 | 20.16 | 3000 | 252.7 | 16.43 | 53.3 |
| ICTY17251L24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.37 | 8.88 | 2500 | 180.5 | 8.38 | 46 |
| ICTY17251X48B | Two Ball | 48 | 36 ~ 72 | 1.25 | 60 | 5300 | 382.66 | 37.69 | 62.3 |
| ICTY17251H48B | Two Ball | 48 | 36 ~ 72 | 0.82 | 39.36 | 4500 | 324.9 | 27.17 | 58.8 |
| ICTY17251M48B | Two Ball | 48 | 36 ~ 72 | 0.44 | 21.12 | 3500 | 252.7 | 16.43 | 53.3 |
| ICTY17251L48B | Two Ball | 48 | 36 ~ 72 | 0.21 | 10.08 | 2500 | 180.5 | 8.38 | 46 |
