17251 Axial Series A
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTH17251L48B | Two Ball | 48 | 40.0 to 55.0 | 0.45 | 21.60 | 3000 | 229.5 | 0.604 | 50 |
| ICTH17251M48B | Two Ball | 48 | 40.0 to 55.0 | 0.71 | 34.08 | 4000 | 305.0 | 1.024 | 59 |
| ICTH17251H48B | Two Ball | 48 | 40.0 to 55.0 | 1.10 | 52.80 | 5000 | 381.3 | 1.600 | 64 |

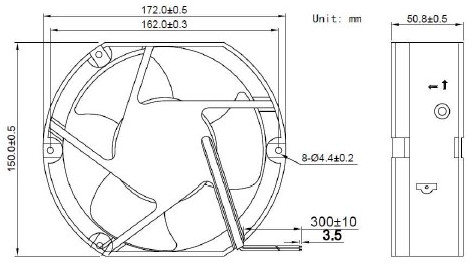

Dimension Drawing |

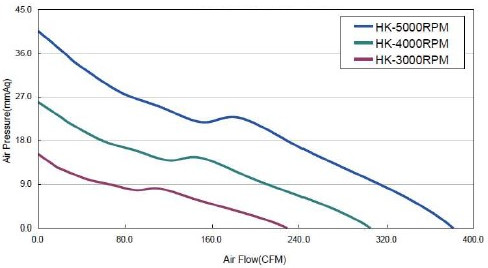

PQ Curve |
 |
 |
