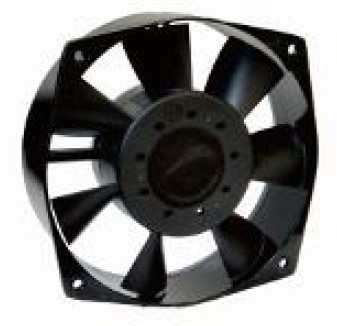

15850 Axial Series YA

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating Voltage Range (VAC)Rated
Current (Amp)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTU15850H11BTwo Ball100-1250.26/0.282700/3150225/25016.0/18.054/55
ICTU15850H22BTwo Ball220-2400.14/0.152700/3150225/25016.0/18.054/55
