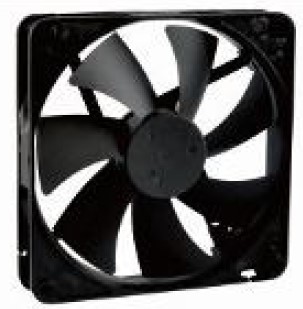

14025 Axial Series Y
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY14025H12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.21 | 2.52 | 2000 | 86.2 | 2.38 | 39.31 |
| ICTY14025M12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.16 | 1.92 | 1700 | 73.27 | 1.72 | 35.78 |
| ICTY14025L12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.08 | 0.96 | 1400 | 60.34 | 1.17 | 31.56 |
| ICTY14025H24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.07 | 1.68 | 2000 | 86.2 | 2.38 | 39.31 |
| ICTY14025M24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.06 | 1.44 | 1700 | 73.27 | 1.72 | 35.78 |
| ICTY14025L24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.05 | 1.2 | 1400 | 60.34 | 1.17 | 31.56 |
| ICTY14025H12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.21 | 2.52 | 2000 | 86.2 | 2.38 | 39.31 |
| ICTY14025M12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.16 | 1.92 | 1700 | 73.27 | 1.72 | 35.78 |
| ICTY14025L12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.08 | 0.96 | 1400 | 60.34 | 1.17 | 31.56 |
| ICTY14025H24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.07 | 1.68 | 2000 | 86.2 | 2.38 | 39.31 |
| ICTY14025M24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.06 | 1.44 | 1700 | 73.27 | 1.72 | 35.78 |
| ICTY14025L24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.05 | 1.2 | 1400 | 60.34 | 1.17 | 31.56 |
