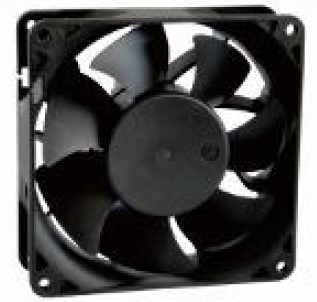

12038 Axial Series YC
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
![Fan Cert 1](https://www.iceberg-thermal.com/wp-content/uploads/2021/10/Fan_Cert-1.png)
![EC12038 EC12038](https://www.iceberg-thermal.com/wp-content/uploads/2021/12/EC12038.jpg)
Item No. | Bearing Type | Operating Voltage Range (VAC) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
---|---|---|---|---|---|---|---|
ICTG12038HACS | Sleeve | 110/220 | 9 | 3500 | 136.62 | 11.35 | 50.6 |
ICTG12038MACS | Sleeve | 110/220 | 7 | 3000 | 117.1 | 8.34 | 46.92 |
ICTG12038LACS | Sleeve | 110/220 | 5 | 2500 | 97.59 | 5.79 | 42.56 |
ICTG12038HACB | Two Ball | 110/220 | 9 | 3500 | 136.62 | 11.35 | 50.6 |
ICTG12038MACB | Two Ball | 110/220 | 7 | 3000 | 117.1 | 8.34 | 46.92 |
ICTG12038LACB | Two Ball | 110/220 | 5 | 2500 | 97.59 | 5.79 | 42.56 |
