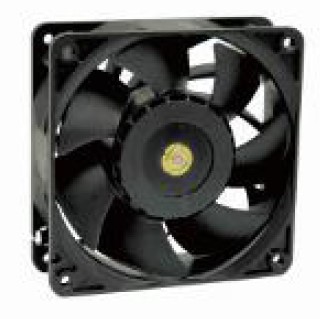

12038 Axial Series Y3
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY12038CX12B | Two Ball | 12 | 7.0 ~ 13.8 | 3.6 | 43.2 | 6500 | 213.77 | 36.26 | 63.5 |
| ICTY12038CH12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.72 | 20.64 | 5500 | 180.88 | 25.96 | 59.87 |
| ICTY12038CM12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.12 | 13.44 | 4500 | 148 | 17.38 | 55.51 |
| ICTY12038CL12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.72 | 8.64 | 3500 | 115.11 | 10.51 | 50.06 |
| ICTY12038CY24B | Two Ball | 24 | 14.0 ~ 27.6 | 2.63 | 63.12 | 8000 | 263.1 | 54.93 | 68.01 |
| ICTY12038CX24B | Two Ball | 24 | 14.0 ~ 27.6 | 1.67 | 40.08 | 7000 | 230.22 | 42.05 | 65.11 |
| ICTY12038CH24B | Two Ball | 24 | 14.0 ~ 27.6 | 1.12 | 26.88 | 6000 | 197.33 | 30.9 | 61.76 |
| ICTY12038CM24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.69 | 16.56 | 5000 | 164.44 | 21.46 | 57.8 |
| ICTY12038CL24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.45 | 10.8 | 4000 | 131.55 | 13.73 | 52.96 |
| ICTY12038CY48B | Two Ball | 48 | 36 ~ 72 | 1.22 | 58.56 | 8000 | 263.1 | 54.93 | 68.01 |
| ICTY12038CX48B | Two Ball | 48 | 36 ~ 72 | 0.95 | 45.6 | 7000 | 230.22 | 42.05 | 65.11 |
| ICTY12038CH48B | Two Ball | 48 | 36 ~ 72 | 0.6 | 28.8 | 6000 | 197.33 | 30.9 | 61.76 |
| ICTY12038CM48B | Two Ball | 48 | 36 ~ 72 | 0.35 | 16.8 | 5000 | 164.44 | 21.46 | 57.8 |
| ICTY12038CL48B | Two Ball | 48 | 36 ~ 72 | 0.25 | 12 | 4000 | 131.55 | 13.73 | 52.96 |
