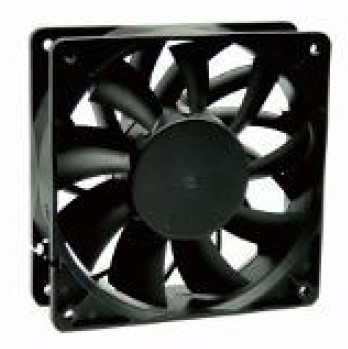

12038 Axial Series Y2
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTY12038BH12S | Sleeve | 12 | 7.0 ~ 13.8 | 1.6 | 19.2 | 3800 | 180.36 | 14.03 | 56.4 |
| ICTY12038BM12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.98 | 11.76 | 3200 | 148.35 | 9.83 | 51.9 |
| ICTY12038BL12S | Sleeve | 12 | 7.0 ~ 13.8 | 0.48 | 5.76 | 2600 | 118.16 | 6.39 | 46.9 |
| ICTY12038BH24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.8 | 19.2 | 3800 | 180.36 | 14.03 | 56.4 |
| ICTY12038BM24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.5 | 12 | 3200 | 148.35 | 9.83 | 51.9 |
| ICTY12038BL24S | Sleeve | 24 | 14.0 ~ 27.6 | 0.25 | 6 | 2600 | 118.16 | 6.39 | 46.9 |
| ICTY12038BH48S | Sleeve | 48 | 36 ~ 72 | 0.4 | 19.2 | 3800 | 180.36 | 14.03 | 56.4 |
| ICTY12038BM48S | Sleeve | 48 | 36 ~ 72 | 0.25 | 12 | 3200 | 148.35 | 9.83 | 51.9 |
| ICTY12038BL48S | Sleeve | 48 | 36 ~ 72 | 0.13 | 6.24 | 2600 | 118.16 | 6.39 | 46.9 |
| ICTY12038BH12B | Two Ball | 12 | 7.0 ~ 13.8 | 1.6 | 19.2 | 3800 | 180.36 | 14.03 | 56.4 |
| ICTY12038BM12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.98 | 11.76 | 3200 | 148.35 | 9.83 | 51.9 |
| ICTY12038BL12B | Two Ball | 12 | 7.0 ~ 13.8 | 0.48 | 5.76 | 2600 | 118.16 | 6.39 | 46.9 |
| ICTY12038BH24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.8 | 19.2 | 3800 | 180.36 | 14.03 | 56.4 |
| ICTY12038BM24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.5 | 12 | 3200 | 148.35 | 9.83 | 51.9 |
| ICTY12038BL24B | Two Ball | 24 | 14.0 ~ 27.6 | 0.25 | 6 | 2600 | 118.16 | 6.39 | 46.9 |
| ICTY12038BH48B | Two Ball | 48 | 36 ~ 72 | 0.4 | 19.2 | 3800 | 180.36 | 14.03 | 56.4 |
| ICTY12038BM48B | Two Ball | 48 | 36 ~ 72 | 0.25 | 12 | 3200 | 148.35 | 9.83 | 51.9 |
| ICTY12038BL48B | Two Ball | 48 | 36 ~ 72 | 0.13 | 6.24 | 2600 | 118.16 | 6.39 | 46.9 |
