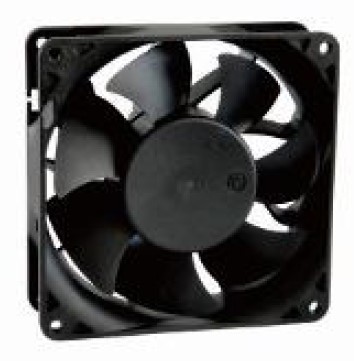

12038 Axial Series Y1

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)

Feature option:

auto restart, limited current, rotate detection, temperature control

Item No.	Bearing Type	Operating Voltage (VDC)	Operating Voltage Range (VDC)	Rated Current (Amp)	Rated Input Power (Watt)	Rated Speed (R.P.M.)	Maximum Air Flow (CFM)	Maximum Air Pressure (mmH2O)	Noise (dB-A)
ICTY12038AH12S	Sleeve	12	7.0 ~ 13.8	0.91	10.92	3800	146.9	12.31	52.96
ICTY12038AM12S	Sleeve	12	7.0 ~ 13.8	0.71	8.52	3200	123.71	8.73	48
ICTY12038AL12S	Sleeve	12	7.0 ~ 13.8	0.4	4.8	2600	100.71	6.17	43.5
ICTY12038AH24S	Sleeve	24	14.0 ~ 27.6	0.48	11.52	3800	146.9	12.31	52.96
ICTY12038AM24S	Sleeve	24	14.0 ~ 27.6	0.35	8.4	3200	123.71	8.73	48
ICTY12038AL24S	Sleeve	24	14.0 ~ 27.6	0.18	4.32	2600	100.71	6.17	43.5
ICTY12038AH48S	Sleeve	48	36 ~ 72	0.26	12.48	3800	146.9	12.31	52.96
ICTY12038AM48S	Sleeve	48	36 ~ 72	0.23	11.04	3200	123.71	8.73	48
ICTY12038AL48S	Sleeve	48	36 ~ 72	0.09	4.32	2600	100.71	6.17	43.5
ICTY12038AH12B	Two Ball	12	7.0 ~ 13.8	0.91	10.92	3800	146.9	12.31	52.96
ICTY12038AM12B	Two Ball	12	7.0 ~ 13.8	0.71	8.52	3200	123.71	8.73	48
ICTY12038AL12B	Two Ball	12	7.0 ~ 13.8	0.4	4.8	2600	100.71	6.17	43.5
ICTY12038AH24B	Two Ball	24	14.0 ~ 27.6	0.48	11.52	3800	146.9	12.31	52.96
ICTY12038AM24B	Two Ball	24	14.0 ~ 27.6	0.35	8.4	3200	123.71	8.73	48
ICTY12038AL24B	Two Ball	24	14.0 ~ 27.6	0.18	4.32	2600	100.71	6.17	43.5
ICTY12038AH48B	Two Ball	48	36 ~ 72	0.26	12.48	3800	146.9	12.31	52.96
ICTY12038AM48B	Two Ball	48	36 ~ 72	0.23	11.04	3200	123.71	8.73	48
ICTY12038AL48B	Two Ball	48	36 ~ 72	0.09	4.32	2600	100.71	6.17	43.5
