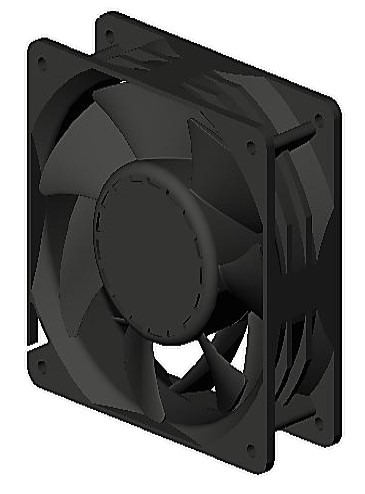

12038 Axial Series X
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTP12038L12B | Two Ball | 12 | 7～13.2 | 0.52 | 6.24 | 3200 | 134 | 10.5 | 46 |
| ICTP12038M12B | Two Ball | 12 | 7～13.2 | 0.86 | 10.32 | 3800 | 160 | 14.6 | 50.9 |
| ICTP12038H12B | Two Ball | 12 | 7～13.2 | 1.3 | 15.6 | 4500 | 186 | 19.1 | 54.8 |

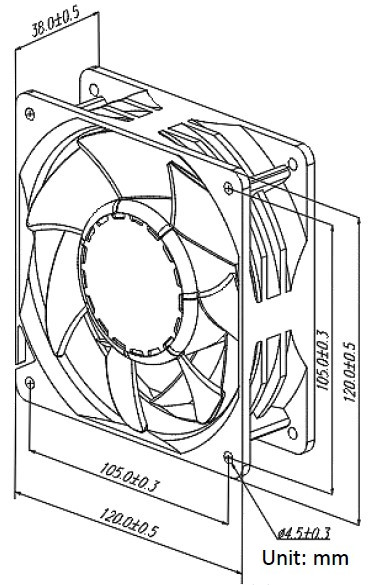

Dimension Drawing |

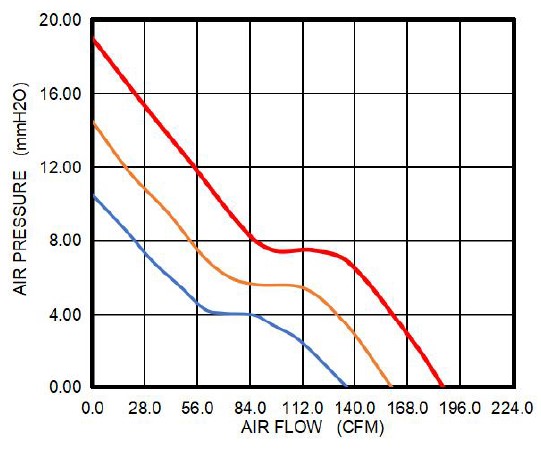

PQ Curve |
 |
 |
