12038 Axial Series A4
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTH12038DL12B | Two Ball | 12 | 7.0 to 13.8 | 0.28 | 3.36 | 3000 | 113.47 | 0.309 | 48 |
| ICTH12038DM12B | Two Ball | 12 | 7.0 to 13.8 | 0.67 | 8.04 | 4000 | 151.29 | 0.549 | 54 |
| ICTH12038DH12B | Two Ball | 12 | 7.0 to 13.8 | 1.40 | 16.80 | 5000 | 189.12 | 0.858 | 59 |
| ICTH12038DX12B | Two Ball | 12 | 7.0 to 13.8 | 2.50 | 30.00 | 6000 | 226.94 | 1.235 | 63 |

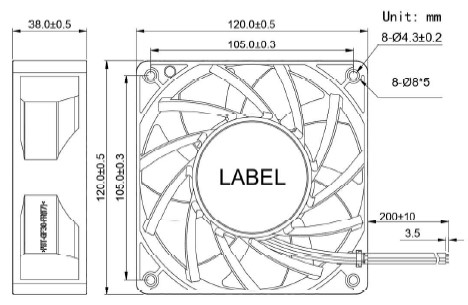

Dimension Drawing |

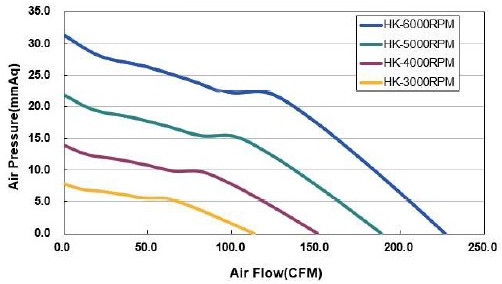

PQ Curve |
 |
 |
