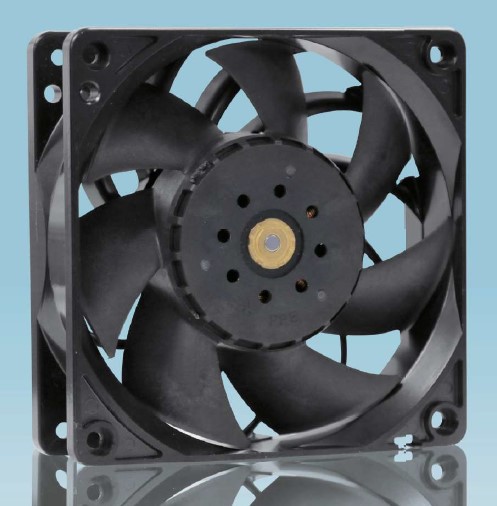

12038 Axial Series A3
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTH12038CL48B | Two Ball | 48 | 7.0 to 13.8 | 0.31 | 14.88 | 5000 | 183.72 | 1.130 | 58 |
| ICTH12038CM48B | Two Ball | 48 | 7.0 to 13.8 | 0.58 | 27.84 | 6000 | 220.47 | 1.627 | 63 |
| ICTH12038CH48B | Two Ball | 48 | 7.0 to 13.8 | 0.96 | 46.08 | 7500 | 275.59 | 2.543 | 68 |
| ICTH12038CX48B | Two Ball | 48 | 7.0 to 13.8 | 1.82 | 87.36 | 9000 | 330.70 | 3.661 | 72 |
| ICTH12038CY48B | Two Ball | 48 | 7.0 to 13.8 | 2.77 | 132.96 | 10500 | 385.82 | 4.983 | 78 |

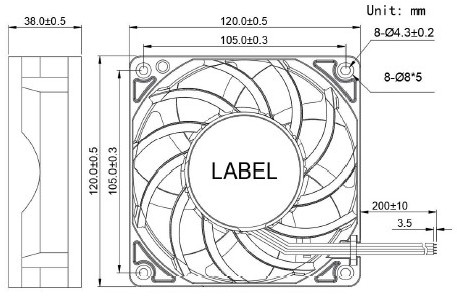

Dimension Drawing |

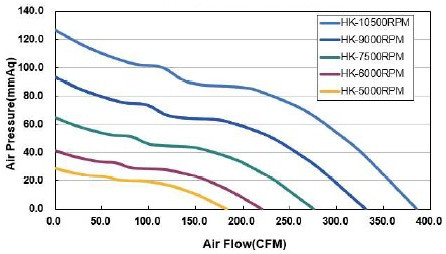

PQ Curve |
 |
 |
