12038 Axial Series A1

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTH12038AL12SSleeve125.0 to 13.80.384.562500101.960.21433.9
ICTH12038AM12SSleeve125.0 to 13.80.809.603500139.130.38653.5
ICTH12038AH12SSleeve125.0 to 13,81.6019.204500178.880.63859.5

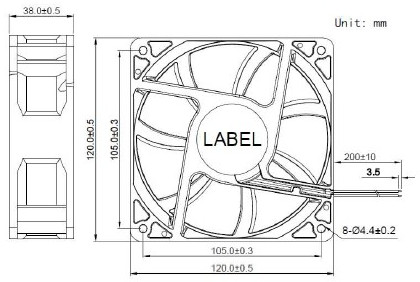

Dimension Drawing

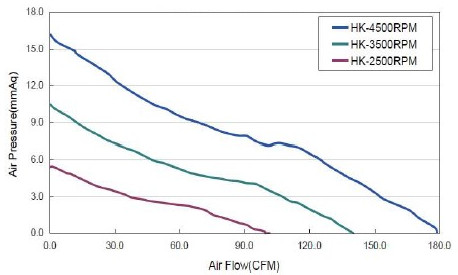

PQ Curve

12025A4 12025B4
