12032 Blower Series A
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTN12032L12B | Two Ball | 12 | 5.0 to 13.8 | 0.38 | 4.56 | 2100 | 23.4 | 0.52 | 47.3 |
| ICTN12032M12B | Two Ball | 12 | 5.0 to 13.8 | 0.57 | 6.84 | 2300 | 25.5 | 0.66 | 49.1 |
| ICTN12032H12B | Two Ball | 12 | 5.0 to 13.8 | 0.82 | 9.84 | 2500 | 27.6 | 0.79 | 51.7 |

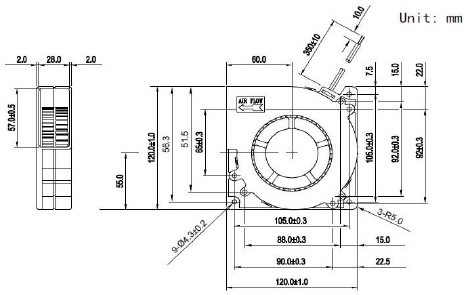

Dimension Drawing |

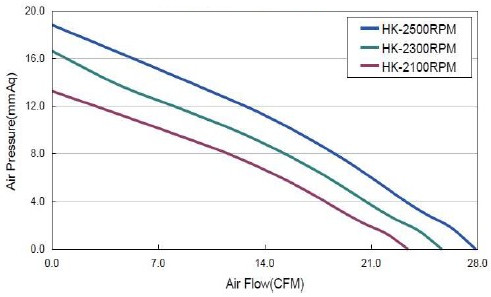

PQ Curve |
 |
 |
