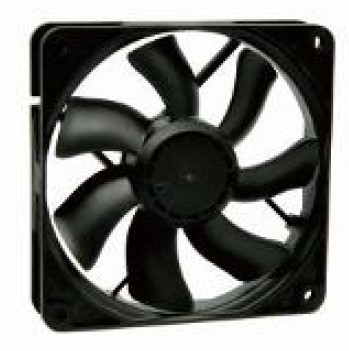

12025 Axial Series Y3

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)

Feature option:

auto restart, limited current, rotate detection, temperature control

Item No.	Bearing Type	Operating Voltage (VDC)	Operating Voltage Range (VDC)	Rated Current (Amp)	Rated Input Power (Watt)	Rated Speed (R.P.M.)	Maximum Air Flow (CFM)	Maximum Air Pressure (mmH2O)	Noise (dB-A)
ICTY12025CM05C	CycleSeal	5	4.5 ~ 5.5	0.3	1.5	2000	69.74	2.47	35
ICTY12025CL05C	CycleSeal	5	4.5 ~ 5.5	0.22	1.1	1800	62.77	2	32
ICTY12025CH12C	CycleSeal	12	7.0 ~ 13.8	0.12	0.6	1500	52.31	1.39	28
ICTY12025CM12C	CycleSeal	12	7.0 ~ 13.8	0.27	3.24	2500	87.18	3.86	39
ICTY12025CL12C	CycleSeal	12	7.0 ~ 13.8	0.11	1.32	2000	69.74	2.47	35
ICTY12025CH24C	CycleSeal	24	14.0 ~ 27.6	0.04	0.72	1500	52.31	1.39	28
ICTY12025CM24C	CycleSeal	24	14.0 ~ 27.6	0.2	4.8	3000	106.36	5.75	47
ICTY12025CL24C	CycleSeal	24	14.0 ~ 27.6	0.11	2.64	2000	69.74	2.47	35
ICTY12025CH48C	CycleSeal	48	36 ~ 72	0.12	5.76	3000	106.36	5.75	47
ICTY12025CM48C	CycleSeal	48	36 ~ 72	0.08	3.84	2000	69.74	2.47	35
ICTY12025CL48C	CycleSeal	48	36 ~ 72	0.3	1.5	2000	69.74	2.47	35
ICTY12025CM05S	Sleeve	5	4.5 ~ 5.5	0.3	1.5	2000	69.74	2.47	35
ICTY12025CL05S	Sleeve	5	4.5 ~ 5.5	0.22	1.1	1800	62.77	2	32
ICTY12025CH12S	Sleeve	12	7.0 ~ 13.8	0.12	0.6	1500	52.31	1.39	28
ICTY12025CM12S	Sleeve	12	7.0 ~ 13.8	0.27	3.24	2500	87.18	3.86	39
ICTY12025CL12S	Sleeve	12	7.0 ~ 13.8	0.11	1.32	2000	69.74	2.47	35
ICTY12025CH24S	Sleeve	24	14.0 ~ 27.6	0.04	0.72	1500	52.31	1.39	28
ICTY12025CM24S	Sleeve	24	14.0 ~ 27.6	0.2	4.8	3000	106.36	5.75	47
ICTY12025CL24S	Sleeve	24	14.0 ~ 27.6	0.11	2.64	2000	69.74	2.47	35
ICTY12025CH48S	Sleeve	48	36 ~ 72	0.12	5.76	3000	106.36	5.75	47
ICTY12025CM48S	Sleeve	48	36 ~ 72	0.08	3.84	2000	69.74	2.47	35
ICTY12025CL48S	Sleeve	48	36 ~ 72	0.3	1.5	2000	69.74	2.47	35
ICTY12025CM05B	Two Ball	5	4.5 ~ 5.5	0.3	1.5	2000	69.74	2.47	35
ICTY12025CL05B	Two Ball	5	4.5 ~ 5.5	0.22	1.1	1800	62.77	2	32
ICTY12025CH12B	Two Ball	12	7.0 ~ 13.8	0.12	0.6	1500	52.31	1.39	28
ICTY12025CM12B	Two Ball	12	7.0 ~ 13.8	0.27	3.24	2500	87.18	3.86	39
ICTY12025CL12B	Two Ball	12	7.0 ~ 13.8	0.11	1.32	2000	69.74	2.47	35
ICTY12025CH24B	Two Ball	24	14.0 ~ 27.6	0.04	0.72	1500	52.31	1.39	28
ICTY12025CM24B	Two Ball	24	14.0 ~ 27.6	0.2	4.8	3000	106.36	5.75	47
ICTY12025CL24B	Two Ball	24	14.0 ~ 27.6	0.11	2.64	2000	69.74	2.47	35
ICTY12025CH48B	Two Ball	48	36 ~ 72	0.12	5.76	3000	106.36	5.75	47
ICTY12025CM48B	Two Ball	48	36 ~ 72	0.08	3.84	2000	69.74	2.47	35
ICTY12025CL48B	Two Ball	48	36 ~ 72	0.3	1.5	2000	69.74	2.47	35
