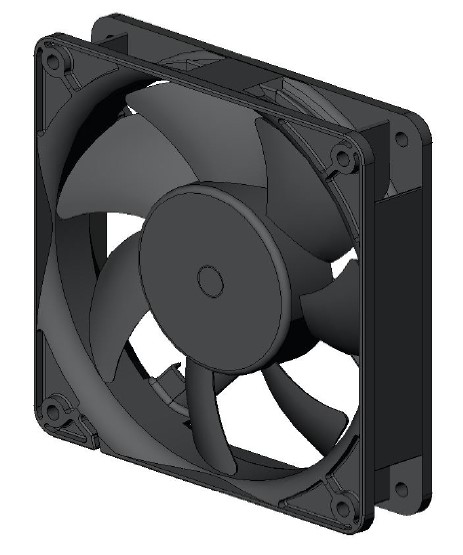

12025 Axial Series X

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTP12025L12BTwo Ball127~13.20.546.5360012010.448
ICTP12025M12BTwo Ball127~13.20.718.5400013312.751
ICTP12025H12BTwo Ball127~13.20.9810.8450015015.854

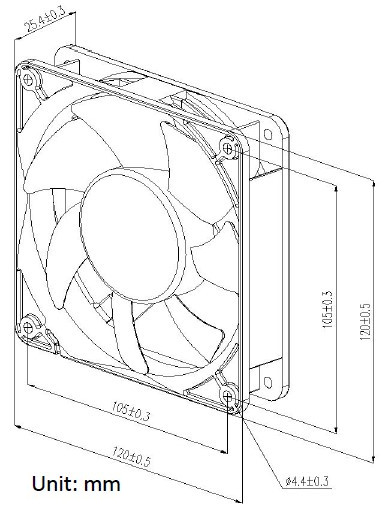

Dimension Drawing

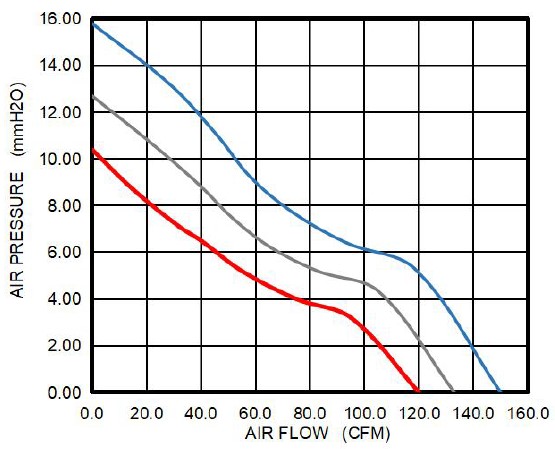

PQ Curve

dim a12025 pq a12025
