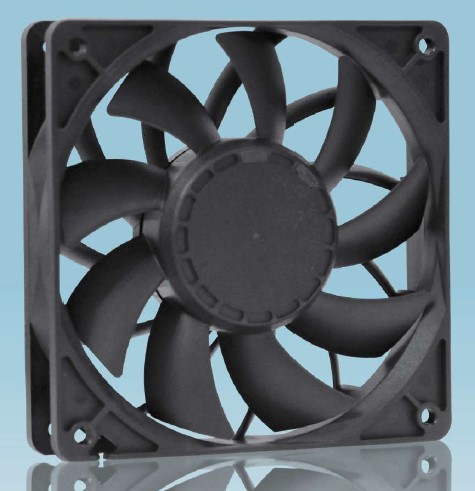

12025 Axial Series A3

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)


Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTH12025CL48BTwo Ball485.0 to
ICTH12025CM48BTwo Ball485.0 to
ICTH12025CH48BTwo Ball485.0 to
ICTH12025CX48BTwo Ball485.0 to
ICTH12025CY48BTwo Ball485.0 to 13.80.2813.444500163.910.64159.0

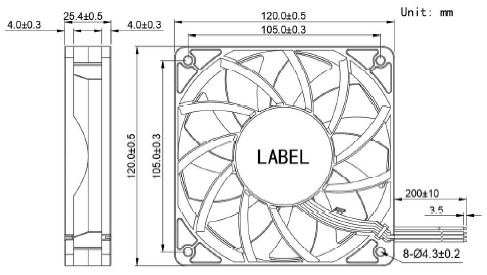

Dimension Drawing

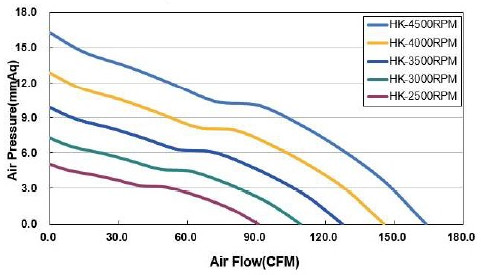

PQ Curve

12025A3 12025B3
