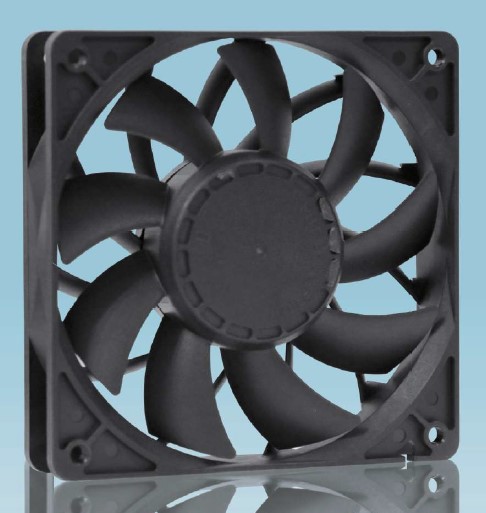

12025 Axial Series A2

Connector option:

PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)



Feature option:

auto restart, limited current, rotate detection, temperature control

Fan Cert 1
Item No.Bearing TypeOperating
Voltage (VDC)
Operating Voltage Range (VDC)Rated
Current (Amp)
Rated Input
Power (Watt)
Rated Speed (R.P.M.)Maximum Air Flow (CFM)Maximum
Air Pressure (mmH2O)
Noise (dB-A)
ICTH12025BL12SSleeve125.0 to 13.80.384.56210023.40.5247.3
ICTH12025BM12SSleeve125.0 to 13.80.576.84230025.50.6649.1
ICTH12025BH12SSleeve125.0 to 13.80.829.84250027.60.7951.7

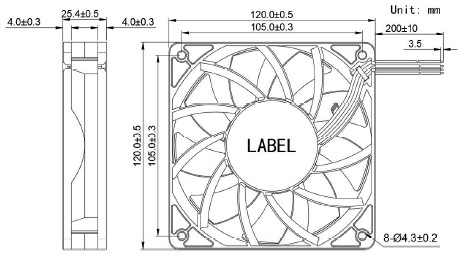

Dimension Drawing

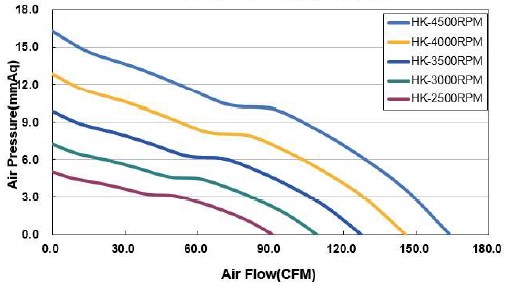

PQ Curve

12025A2 12025B2
