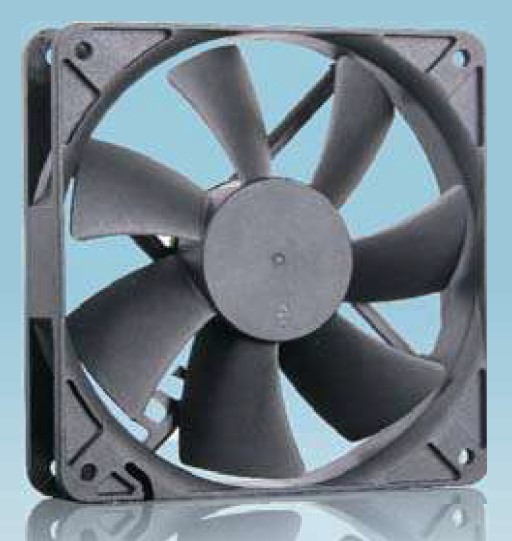

12025 Axial Series A1
Connector option:
PH 2.0mm (2-4PIN), XH 2.54mm (2-4P), KF 2510 2.54mm (2-4P), VH 3.96mm (2-4P)
Feature option:
auto restart, limited current, rotate detection, temperature control
| Item No. | Bearing Type | Operating Voltage (VDC) | Operating Voltage Range (VDC) | Rated Current (Amp) | Rated Input Power (Watt) | Rated Speed (R.P.M.) | Maximum Air Flow (CFM) | Maximum Air Pressure (mmH2O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|---|
| ICTH12025AL12S | Sleeve | 12 | 5.0 to 13.8 | 0.12 | 1.44 | 1250 | 50 | 0.045 | 22.6 |
| ICTH12025AM12S | Sleeve | 12 | 5.0 to 13.8 | 0.18 | 2.16 | 1500 | 59 | 0.060 | 28.0 |
| ICTH12025AH12S | Sleeve | 12 | 5.0 to 13.8 | 0.22 | 2.64 | 1800 | 78 | 0.097 | 32.0 |

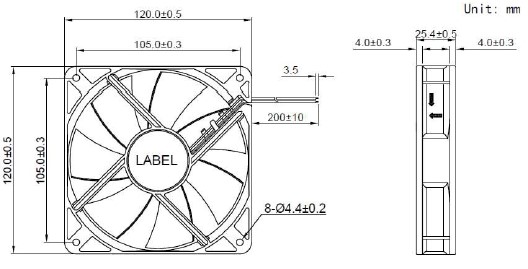

Dimension Drawing |

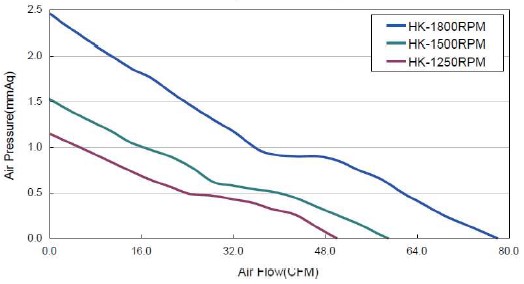

PQ Curve |
 |
 |
