Description

"State of the art cooler designed EXCLUSIVELY for the AMD Ryzen™ Threadripper™ PRO and
the 3rd Gen Threadripper™"

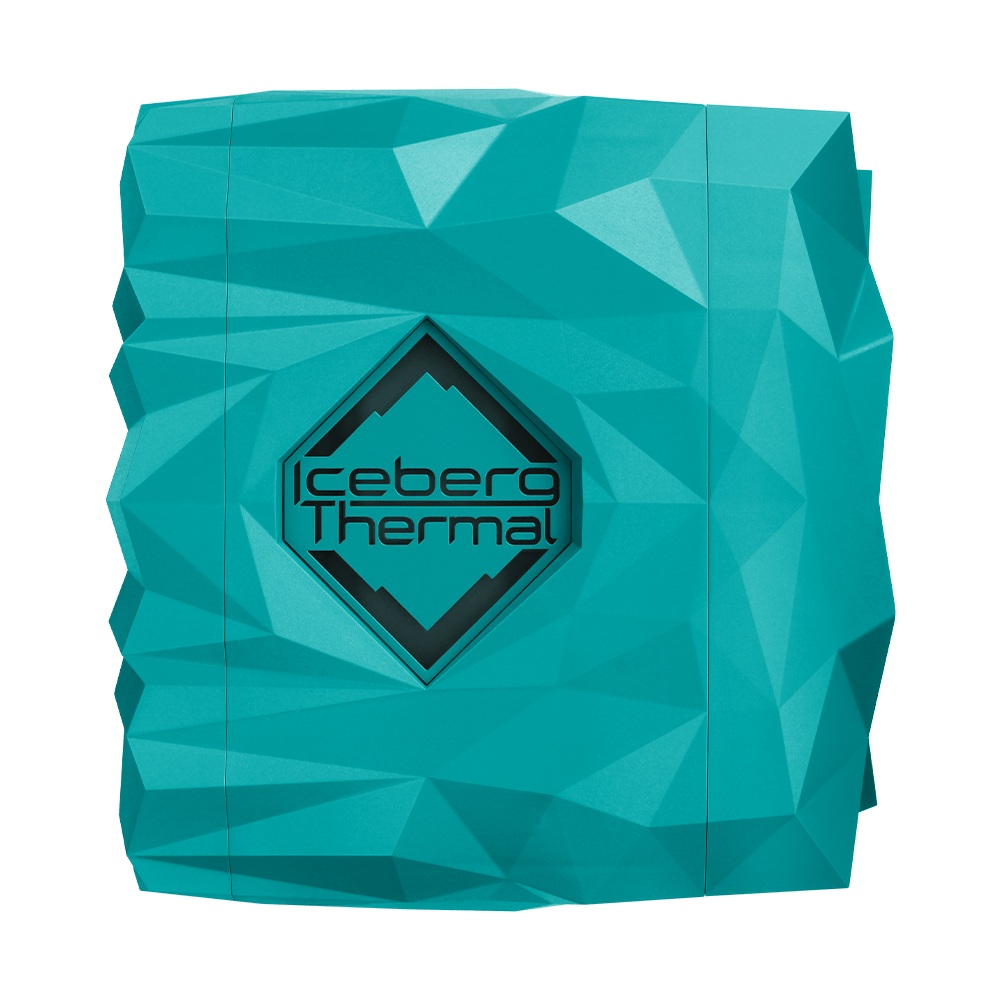

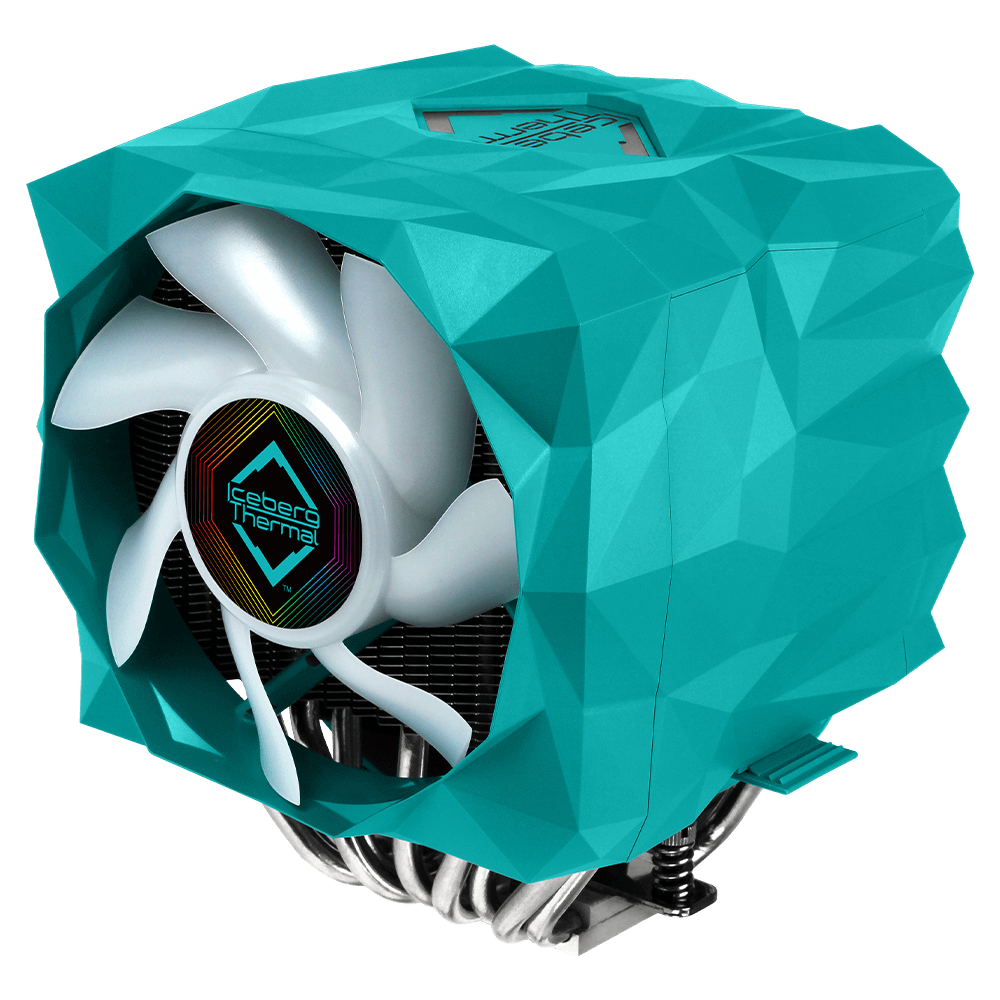

Sensational Iceberg Shell
Gives Your Gaming PC
a Standout Element!

Artistically designed Iceberg Shell protects your cooler and provides an exclusive look for your custom rig.

IceGALE 140 Feature02

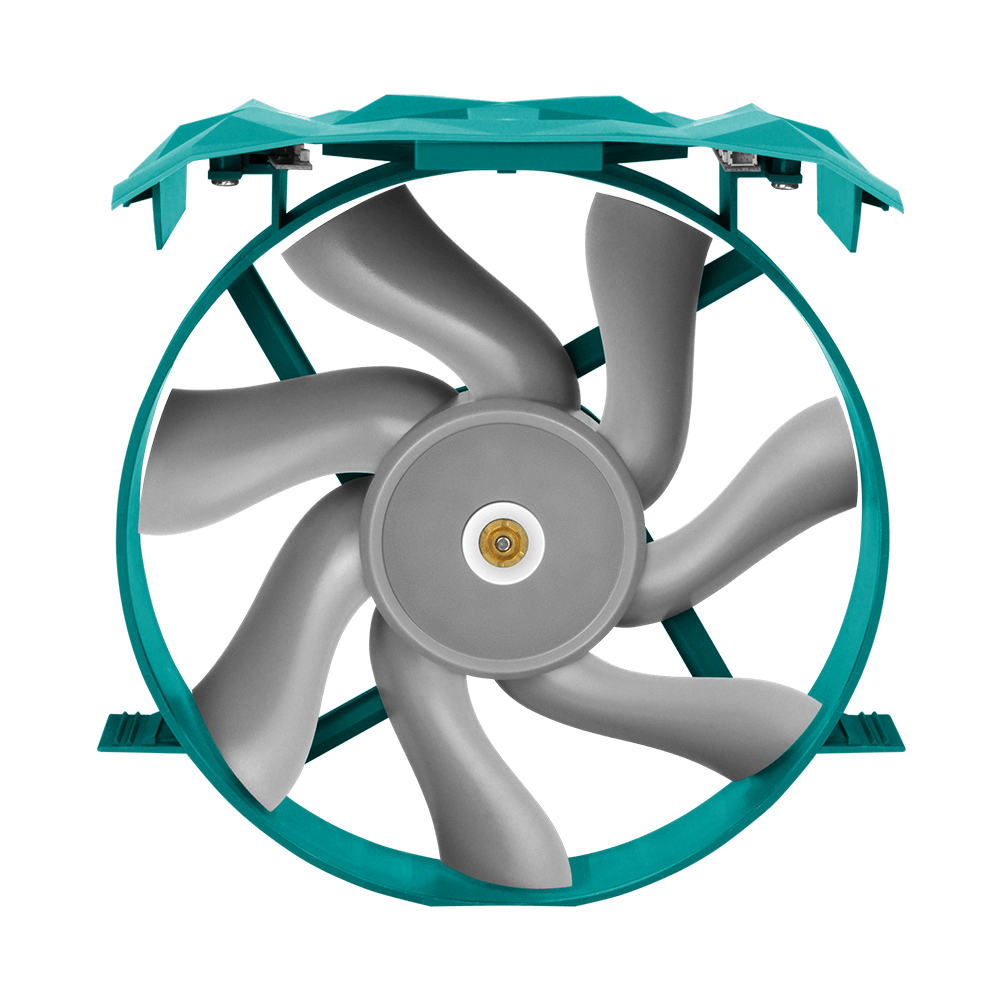

Mechanical Automatic Start/Stop

Creates a quiet environment and reduces power consumption, decreasing heat, to create a more comfortable work/play experience. When the fan is in off mode it goes silent, until the PWM duty cycle reaches 21% loading.

Complete
Bond Soldering​

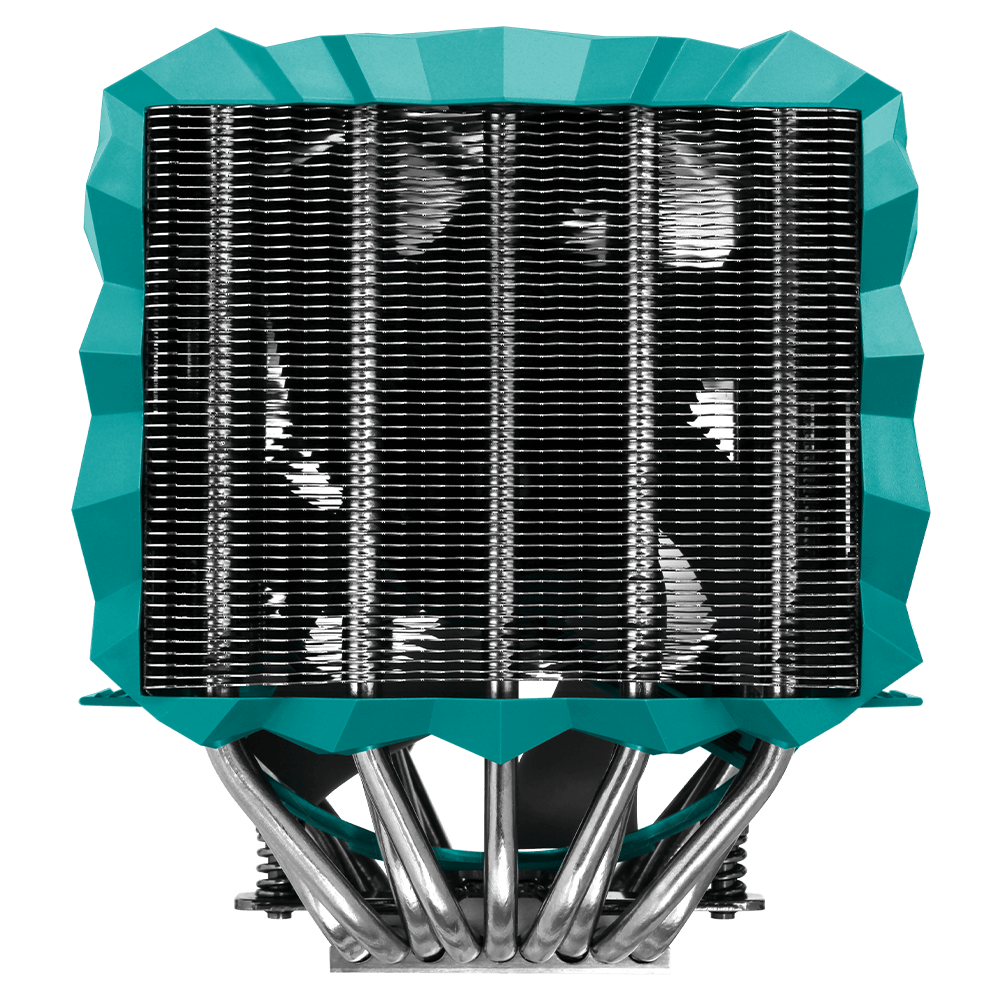

Complete bond soldering between fin sheets, not a stacked fin array. Soldering bond creates an optimum utilization of the cooler

2 mm fin air gaps, for the best balance between airflow and surface contact, to achieve rapid heat dissipation.
Asset 1 1

Gleaming ARGB Control Function

ARGB function allows YOU to customize the colors you want gleaming from your CPU cooler.

Optimized
Heat Control​

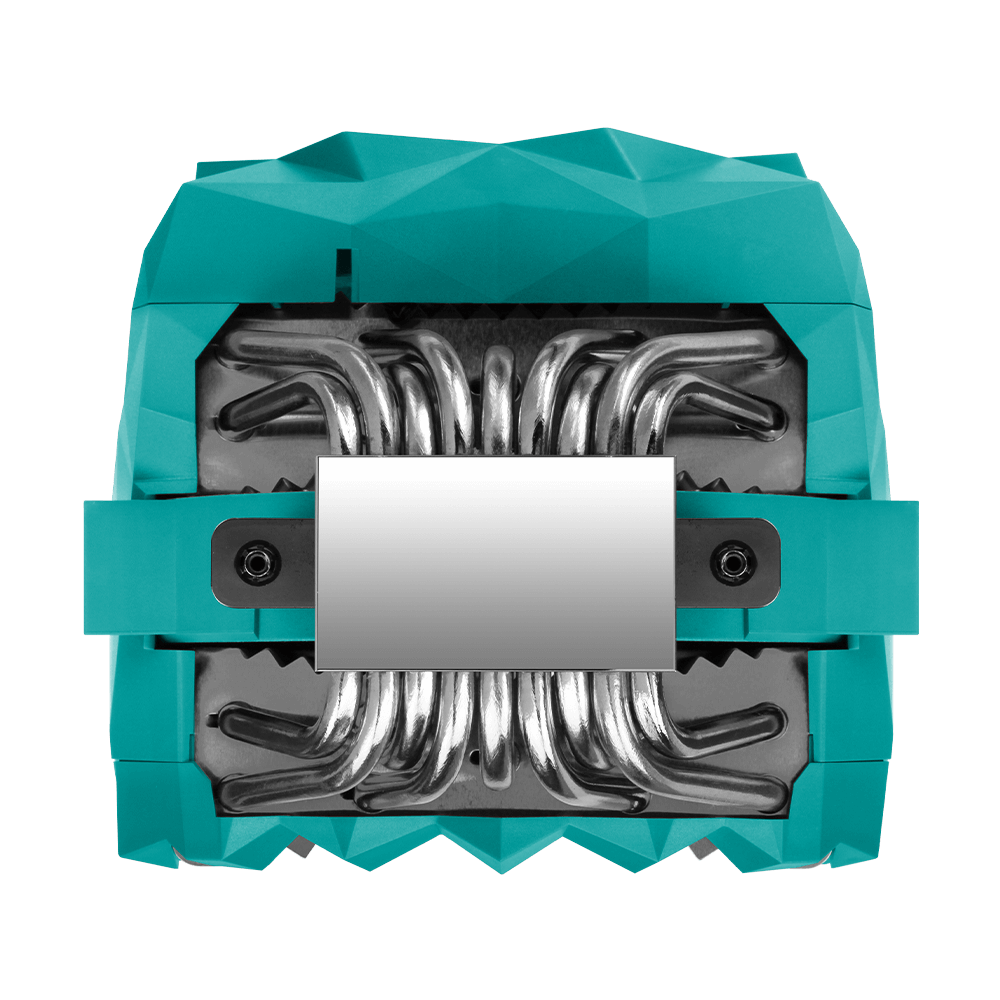

Large copper base fully covers the chip set for Maximum Heat Dissipation.

9 Symmetrically designed Tuned Copper Heat Pipes

Heat pipe architecture design with wide sweeping curves to increase performance, allowing the user to overclock!


46 mm RAM clearance allows the space to accommodate RAM modules.

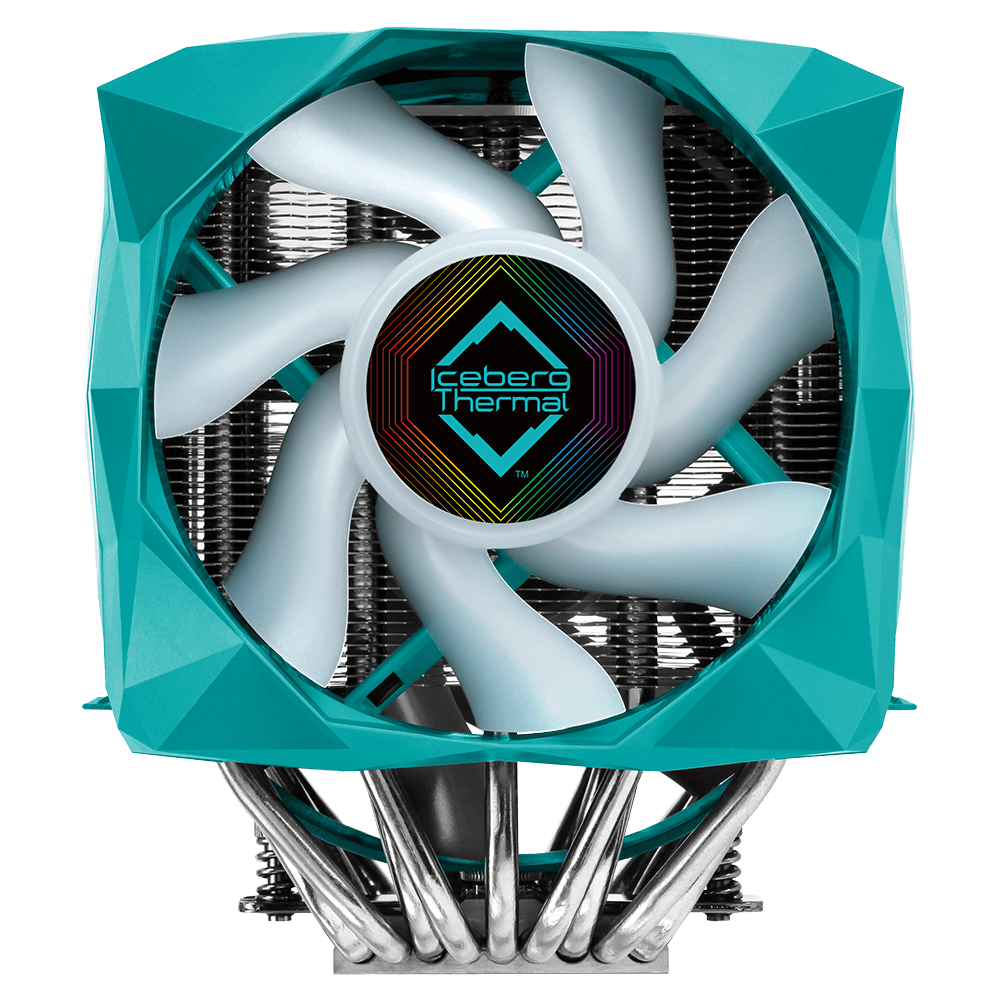

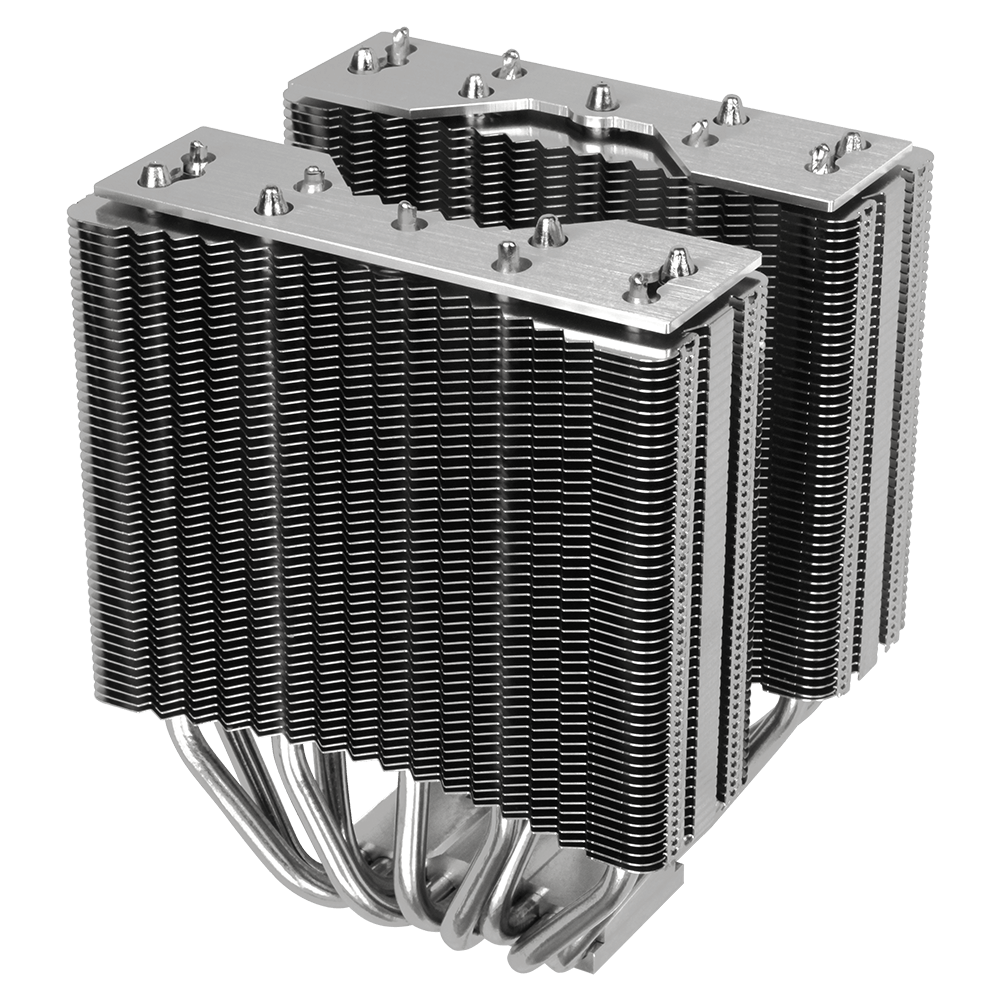

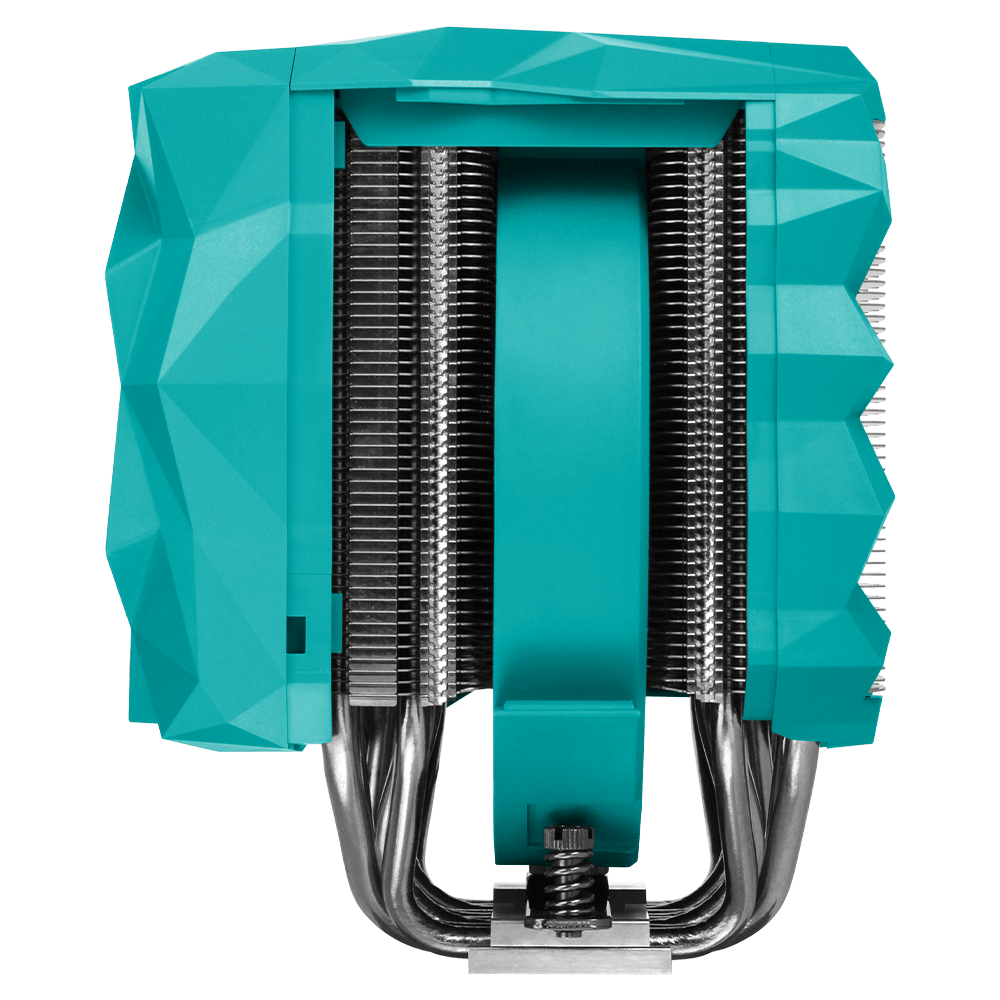

Dual Heat Sink Towers with Dual Fans for DOUBLE the Effectiveness

Two heat sinks connected to the heat pipes with one 120 mm fan and one 140 mm fan. This provides the pinnacle in push-pull technology, creating optimum airflow, allowing you to overclock!

The Unrivaled Cooler for the
AMD Ryzen™ Threadripper™

Ready to game, work, overclock and create with the most powerful and
unmatched solution for the AMD Ryzen™ Threadripper™

Specifications

General

Product Number
ICESLEETX9-D0A
Max. TDP
280 W
RAM Clearance
46 mm
Heatpipe​
Ø 6 mm x 9
Heatsink
Aluminum Fins x 100, Thickness 0.4 mm, Copper Base
Surface Finishing
Nickel-plated
Thermal Compound
FUZEIce® Plus (0.8 g)
Dimensions
135 (L) x 150 (W) x 166 (H) mm
Weight
1,271 g
Compatible Socket
AMD sWRX8, sTRX4, sTR4, SP3
Manufacturer Warranty
2-Year

Lighting

Type
Addressable RGB
Connector
3-pin Addressable RGB Connector
Voltage / Current
5 V / 0.5 A

Fan

Size
120 mm x 1 / 140 mm x 1
Speed
500 – 1850 RPM / 500 – 1600 RPM
Airflow
76 CFM / 96 CFM
Static Pressure
2.8 mm H2O / 2.65 mm H2O
Current
0.2 A / 0.23 A
Voltage
12 V
Bearing
Fluid Dynamic Bearing
Noise Level
0 - 38 dBA (with Auto START/STOP)
Connector
4-pin PWM x 2
MTTF
> 150,000 hours

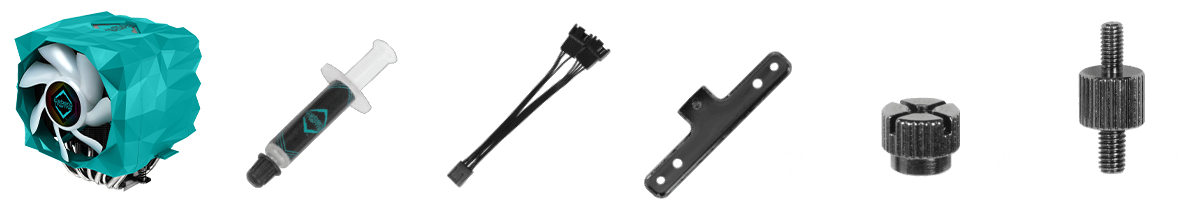

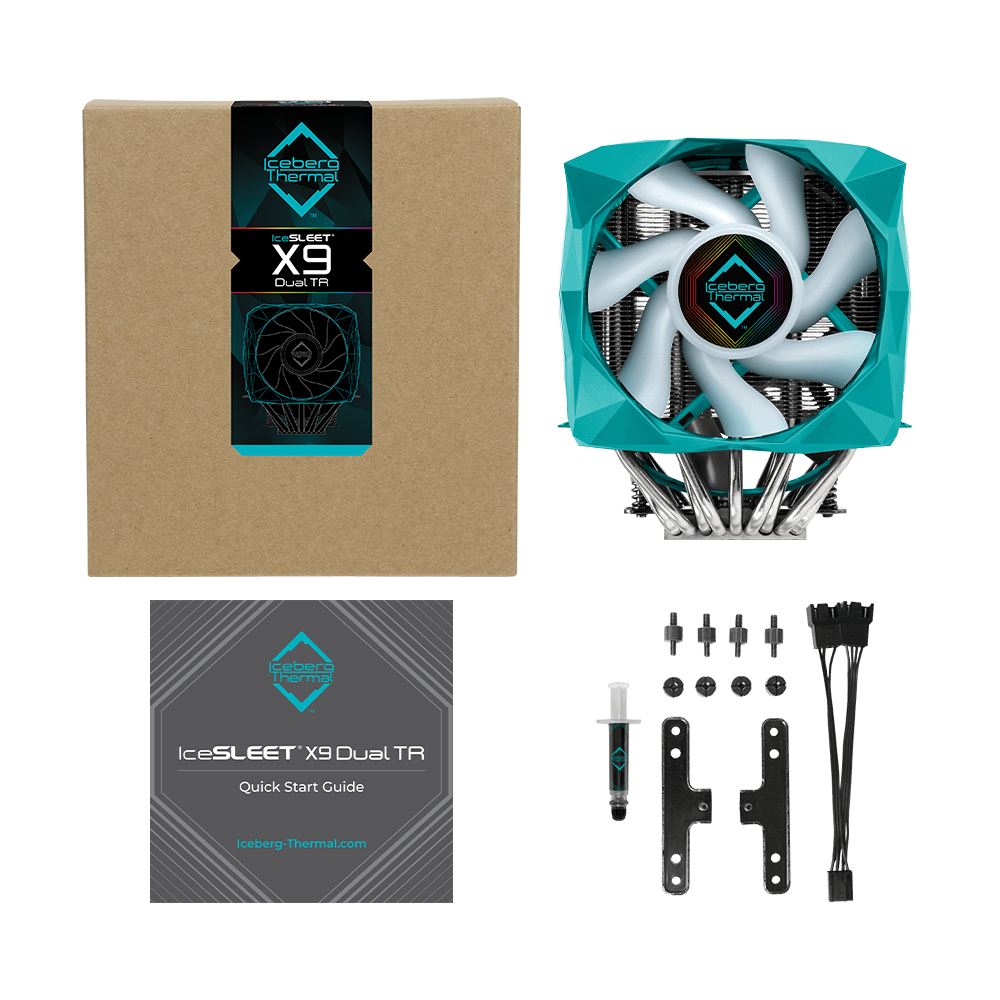

Box Content

X9 ACC 2

Additional information

Heatpipes

9

Socket Support

AMD

Fan

Dual

Ram Clearance

46 mm

Lighting

ARGB

Cooler Type

Air Cooler
