Description

“Bringing the coolest tech to you, because it’s what’s inside that matters”

Sensational

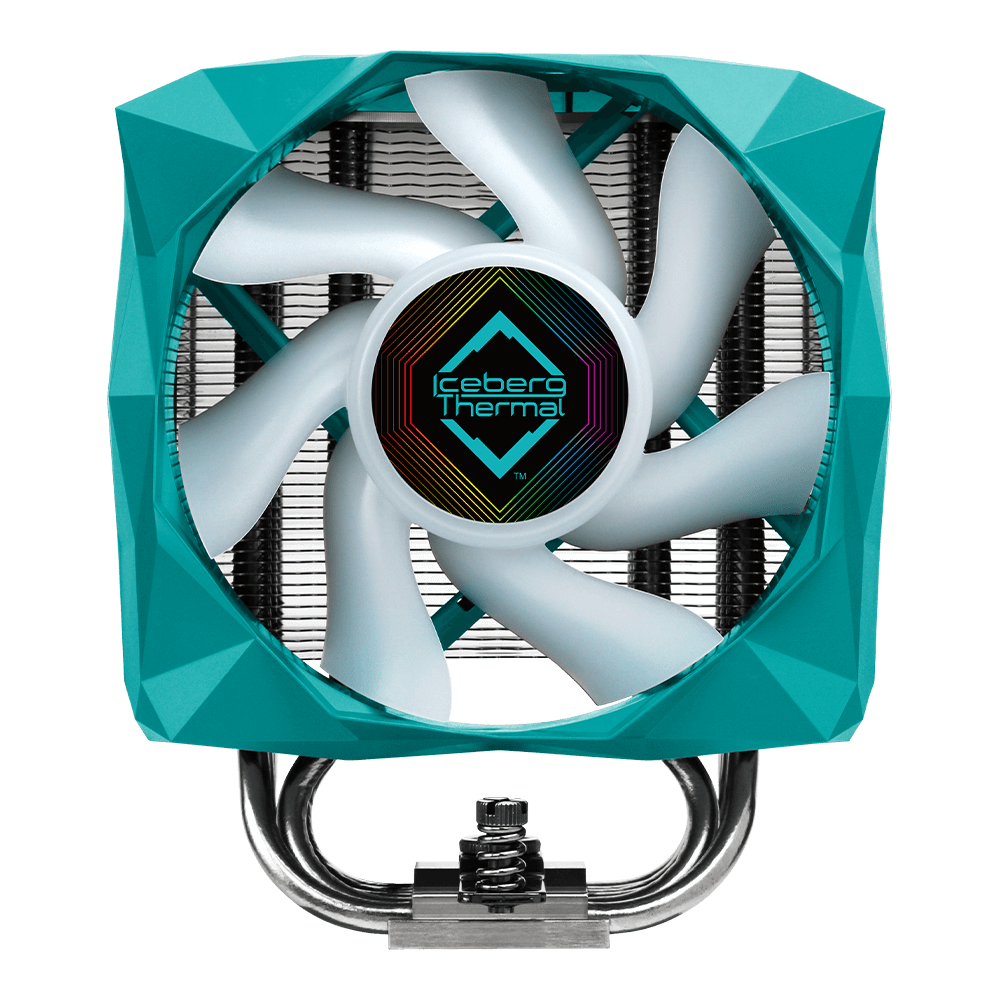

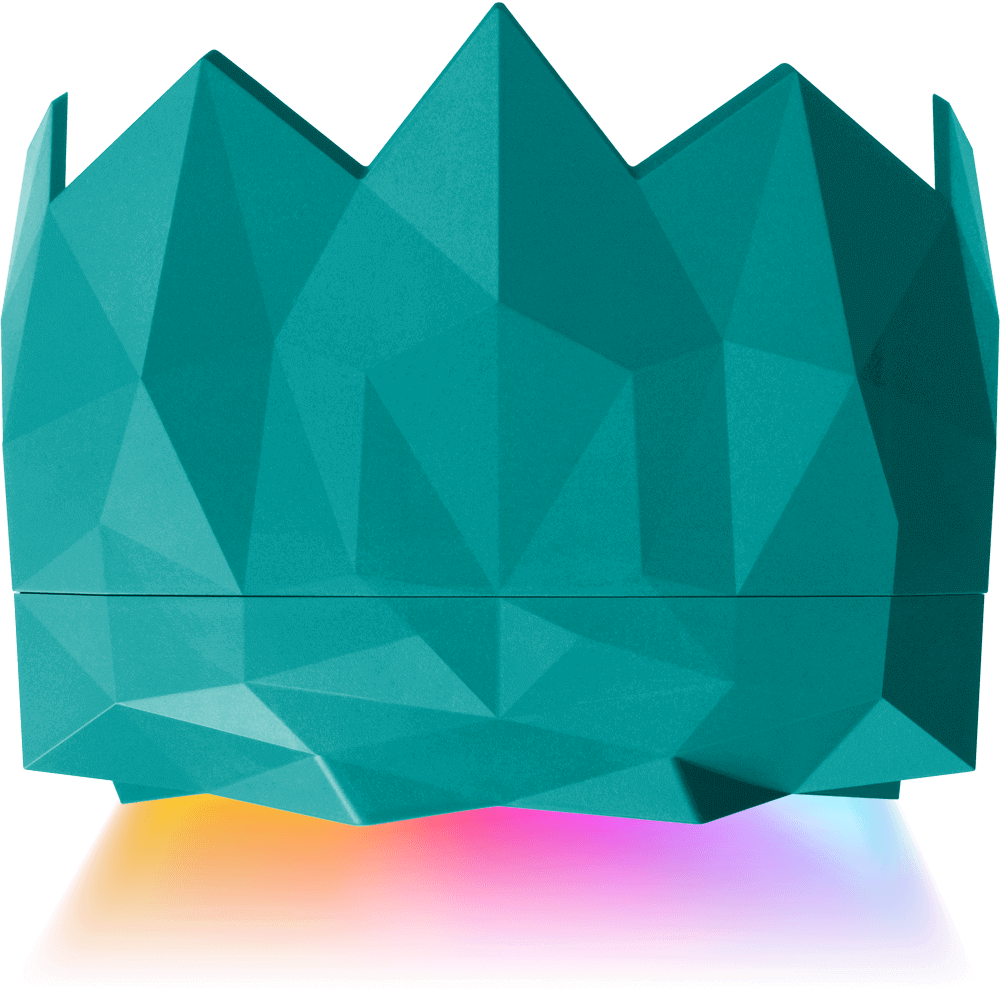

Iceberg Shell Gives Your Gaming PC a Standout Element!

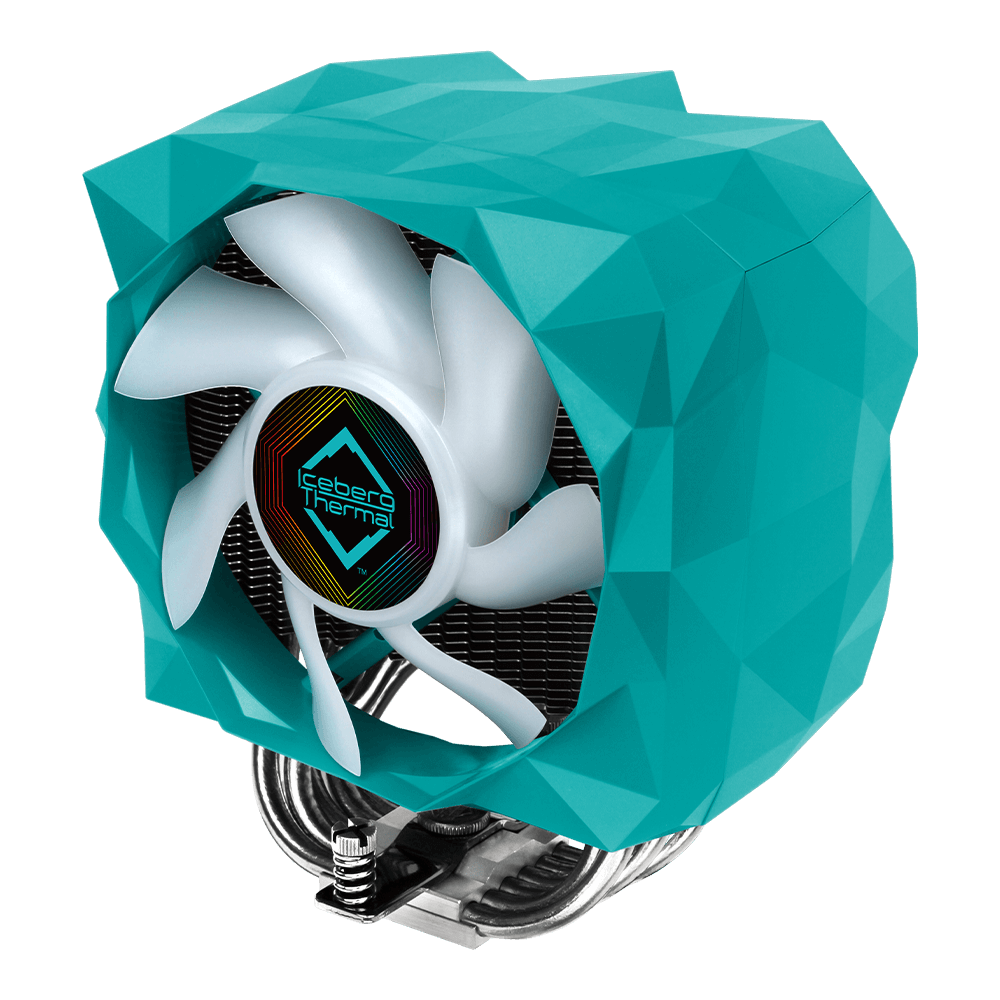

Artistically designed Iceberg Shell protects your cooler and provides an exclusive look for your custom rig.

IceSLEET X6 Feature01
IceGALE 140 Feature02

Mechanical Automatic Start/Stop

Creates a quiet environment and reduces power consumption, decreasing heat, to create a more comfortable work/play experience. When the fan is in off mode it goes silent, until the PWM duty cycle reaches 21% loading.

Complete
Bond Soldering

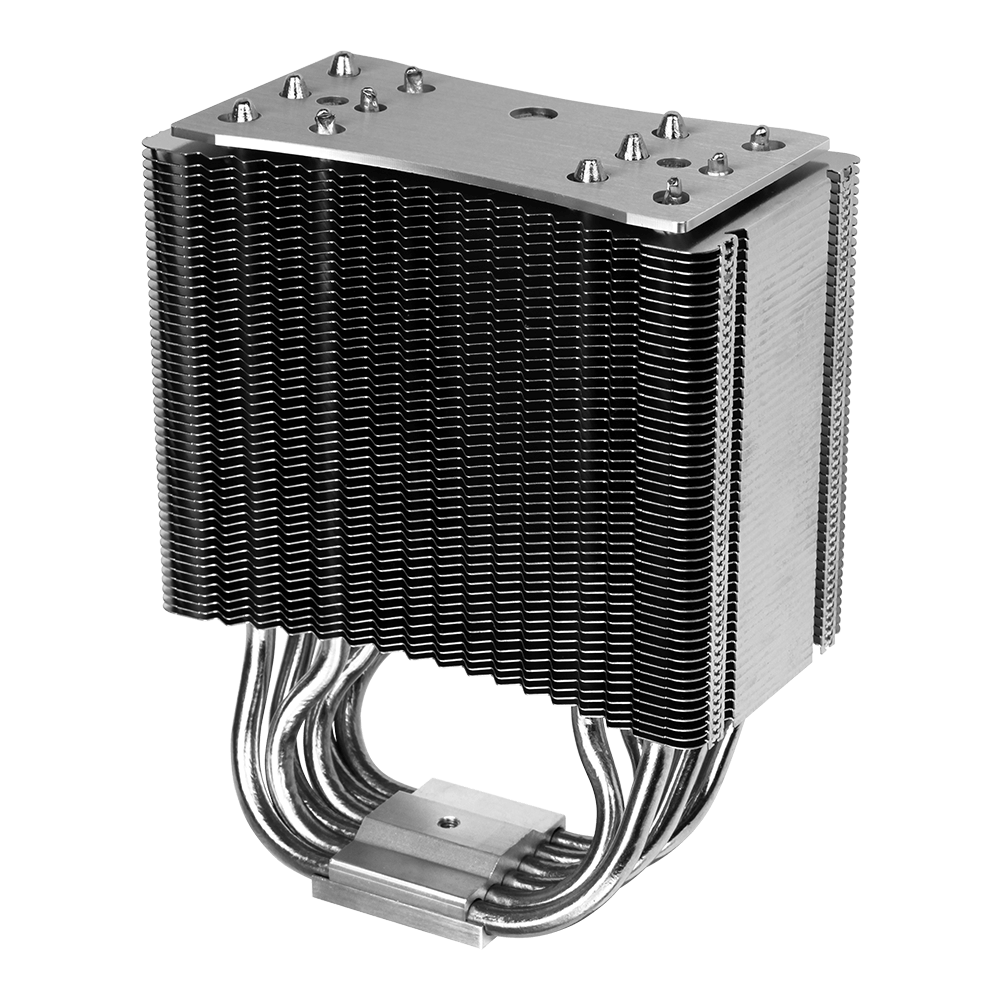

Complete bond soldering between fin sheets, not a stacked fin array. Soldering bond creates an optimum utilization of the cooler.

2 mm fin air gaps, for the best balance between airflow and surface contact, to achieve rapid heat dissipation.

Asset 1 1

Gleaming ARGB Control Function

ARGB function allows YOU to customize the colors you want gleaming from your CPU cooler.

Optimized
Heat Control

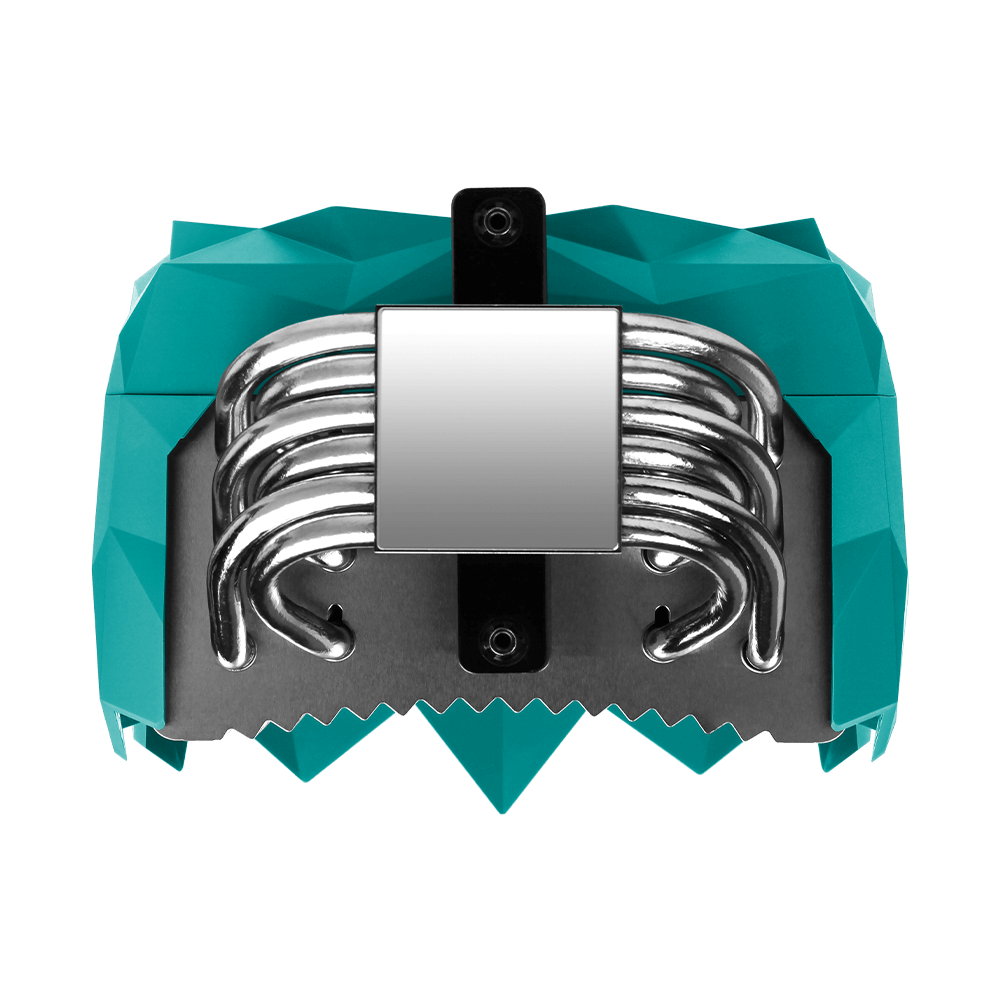

Large copper base fully covers the chip set for Maximum Heat Dissipation.

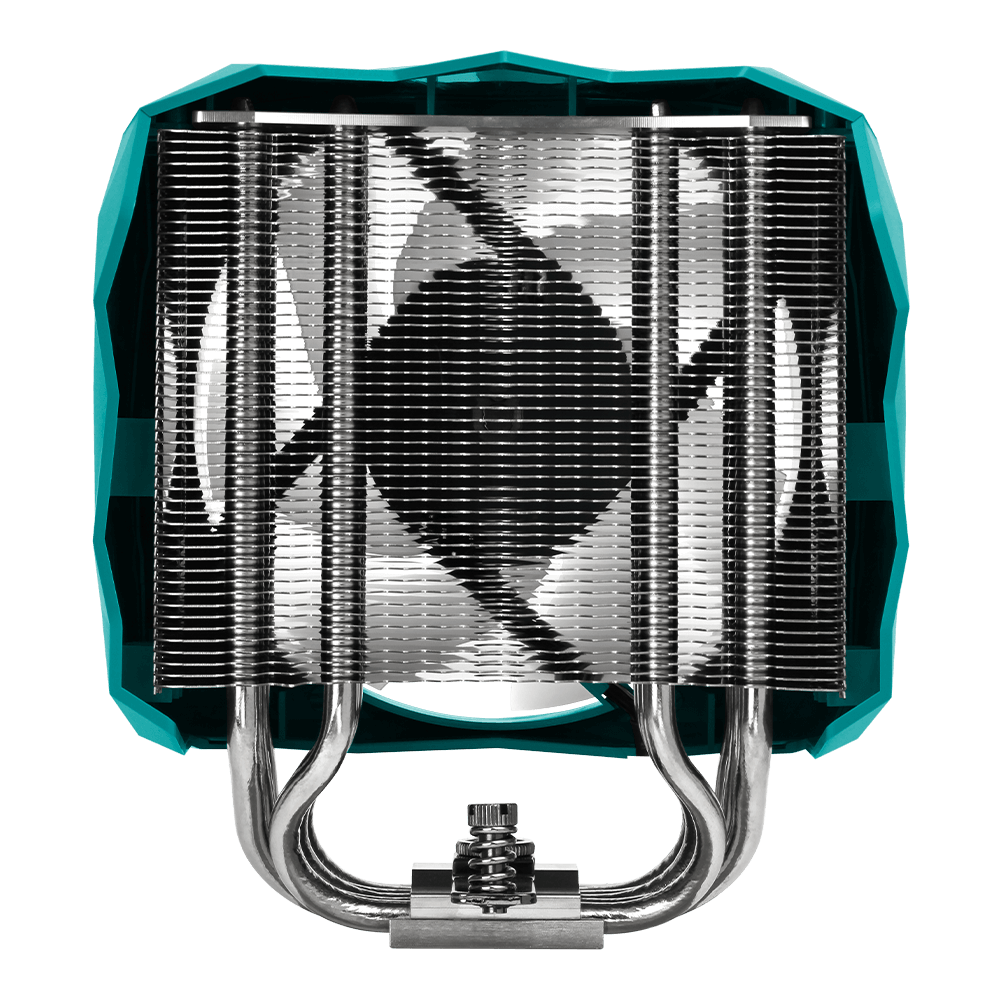

6 Symmetrically designed Tuned Copper Heat Pipes

Heat pipe architecture design with wide sweeping curves to increase performance, allowing the user to overclock!

Infinite RAM clearance allows the space to accommodate RAM modules.

The LGA 1700 Mounting Kit (for IceSLEET® X5 / X6) will be bundled with IceSLEET® X5 / X6 for free.

Ready to
game, work and overclock

Specifications

General

Product Number
ICESLEETX6-00A
Max. TDP
200 W
RAM Clearance
Infinite
Heatpipe
Ø 6 mm x 6
Heatsink
Aluminum Fins x 49, Thickness 0.4 mm, Copper Base
Surface Finishing
Nickel-plated
Thermal Compound
FUZEIce® Plus (0.8 g)
Dimensions
115 (L) x 146 (W) x 159 (H) mm
Weight
882 g
Compatible Socket
Intel LGA 1700, 1200, 2066, 115X, 2011-0, 2011-3 (Square ILM), 1366, 775
AMD AM5, AM4, AM3(+), AM2(+), FM2(+), FM1
Manufacturer Warranty
2-Year

Lighting

Type
Addressable RGB
Connector
3-pin Addressable RGB Connector
Voltage / Current
5 V / 0.3 A

Fan

Size
120 mm x 1
Speed
500 – 1850 RPM
Airflow
76 CFM
Static Pressure
2.8 mm H2O
Voltage / Current
12 V / 0.2 A
Bearing
Fluid Dynamic Bearing
Noise Level
0 - 36 dBA (with Auto START/STOP)
Connector
4-pin PWM
MTTF
> 150,000 hours

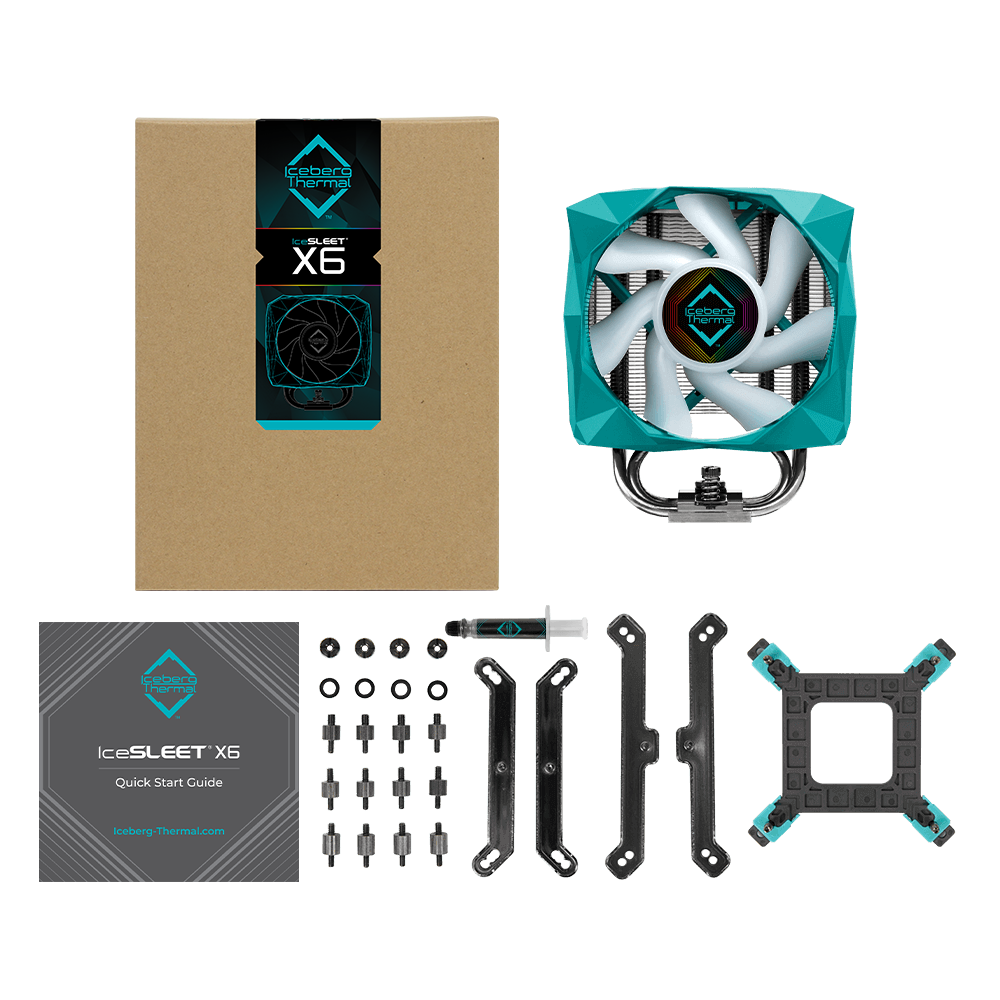

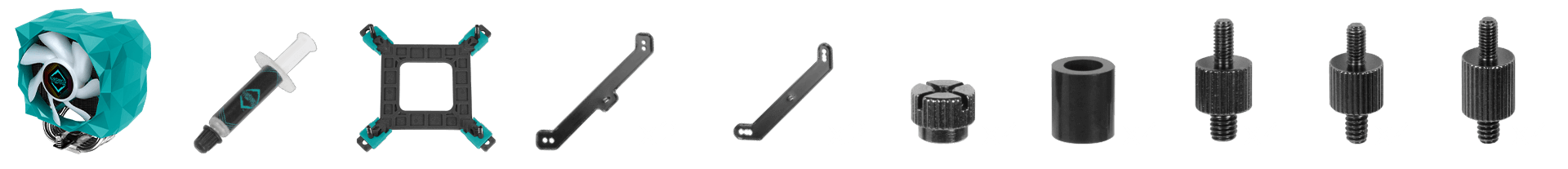

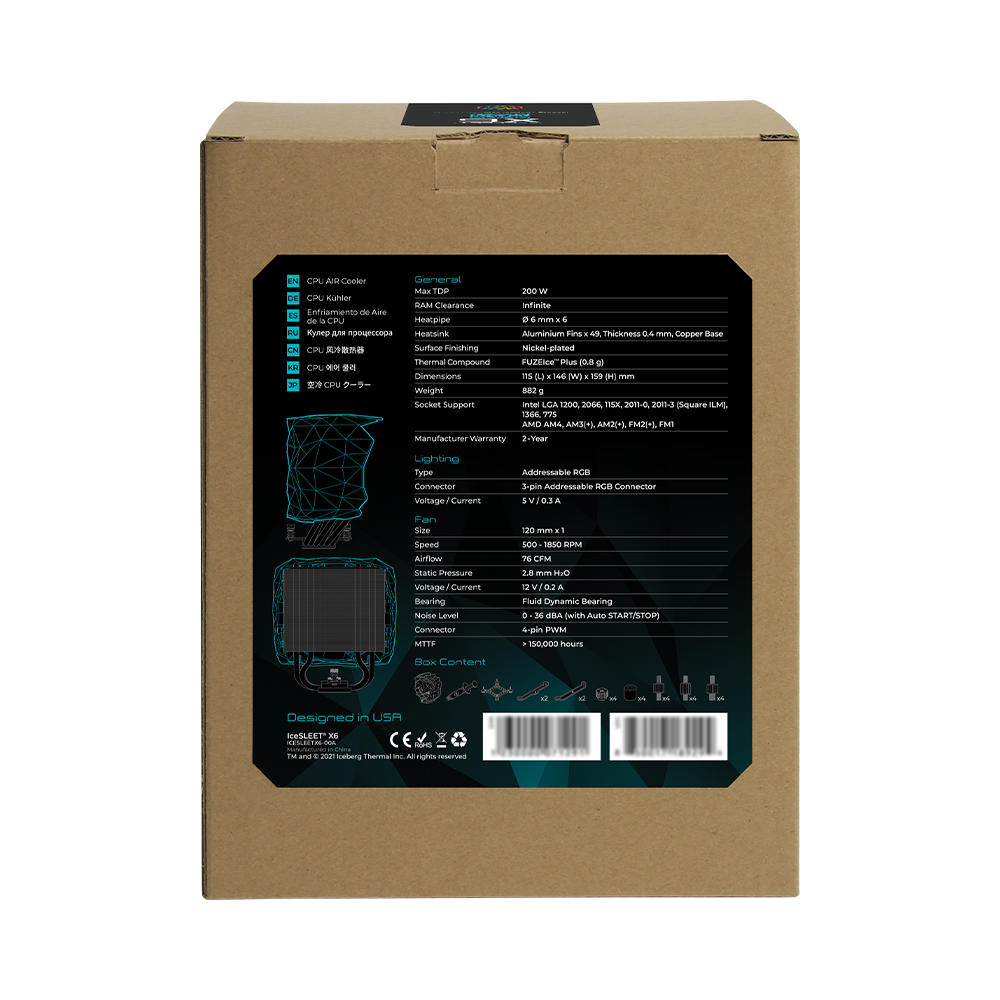

Box Content

X6 ACC 2

Additional information

Heatpipes

6

Socket Support

Intel, AMD

Fan

Single

Ram Clearance

Infinite

Lighting

ARGB

Cooler Type

Air Cooler
