Description
“The G4 Silent is a quiet yet powerful cooler, designed to let users both work hard, and play hard”.
Fan
Slide-Lock Technology
Designed so that you no longer have to struggle with clips to attach your fan to the heatsink. Just slide your fan down and you are ready to go! Not only is it easy, it also improves its RAM clearance.



Authentic Fluid Dynamic Bearing and Two-Plane Balance
Our fans are built to last. The coolers’ fans have TRUE Fluid Dynamic Bearing and are Two-Plane balanced so that your fans lifespan is greatly increased.
Long-Term Adaptability
With a TDP Range of 135W-170W, the G4 Silent will be flexible for your future PC upgrades!


Even with a 50 CFM airflow, our 600-1200 RPM fan has a maximum noise level of 20.5 dBA.
Tuned for YOU
Our coolers feature 4 symmetrically tuned and nickel-plated heatpipes for a sleek finish for this meticulously designed CPU Cooler.

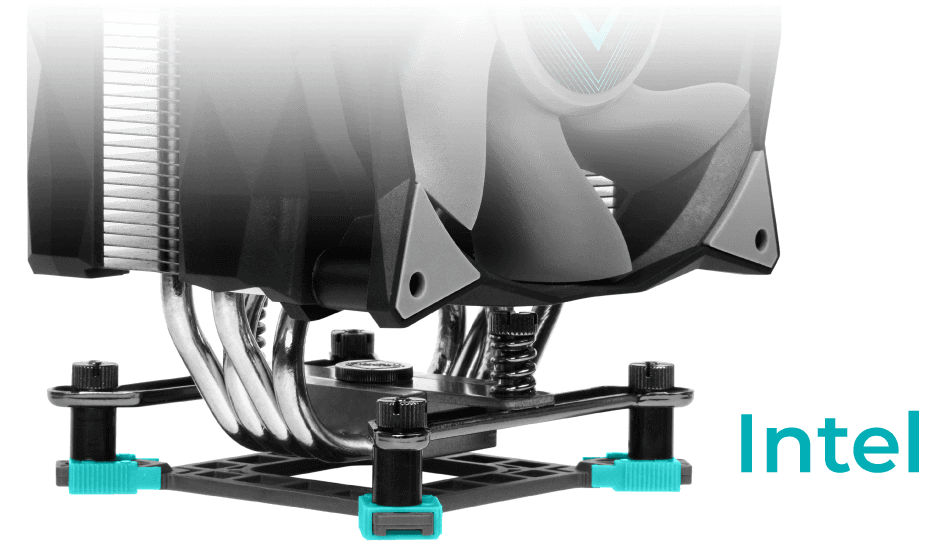

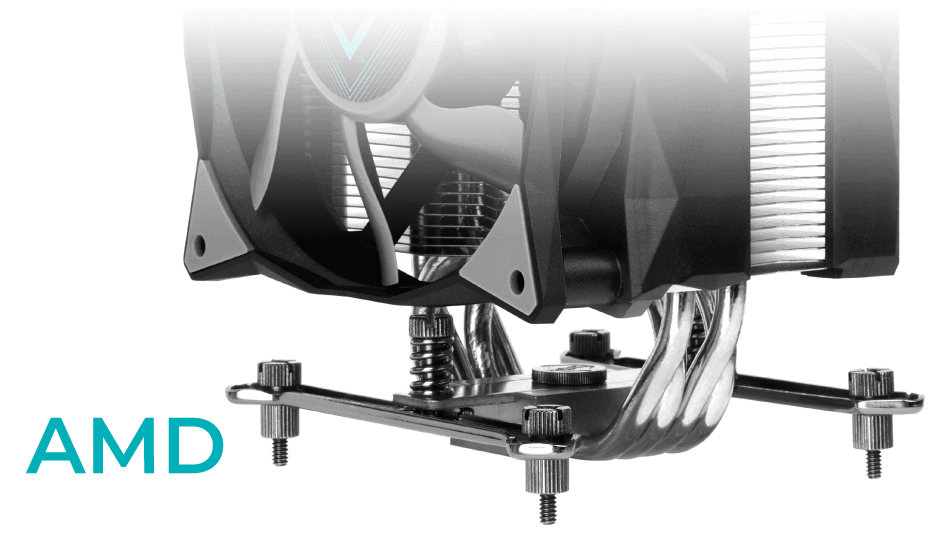

Easy Installation
Installation of your IceSLEET® G4 Silent has never been easier than this. No latches, no clips, no headaches. Just simply screw on the mounting kit!
Optimized Heat Control
Large direct-touch base fully covers the chipset for maximum heat dissipation.


The LGA 1700 Mounting Kit (for IceSLEET® G) will be bundled with IceSLEET® G3 or G4 series for free.
With a cooler this quiet and comfortable, it’s never been easier to Work Hard and Play Hard
Specifications
General
Product Number
ICESLEETG4-BDD-00A
Max. TDP
170 W

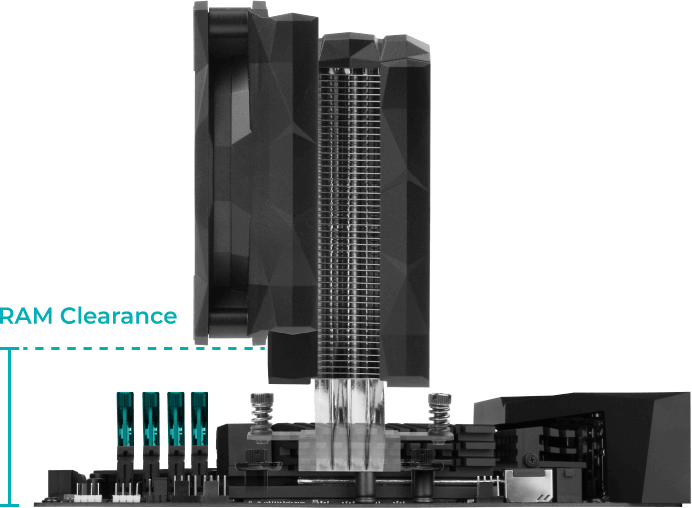

RAM Clearance
35 - 56 mm
Heatpipe
Direct Touch Ø 6 mm x 4
Heatsink
Aluminum Fins x 48, 0.4 mm Thickness
Surface Finishing
Nickel-plated Heatpipes
Thermal Compound
Pre-applied FUZEIce®
Dimensions
81 (L) x 139 (W) x 156 (H) mm
Weight
720 g
Compatible Socket
Intel LGA 1700, 1200, 115X, 1366, 775
AMD AM5, AM4, AM3(+), AM2(+), FM2(+), FM1
Manufacturer Warranty
6-Year
Fan
Size
120 x 120 x 25 mm, IceGALE® 120 series
Speed
600 – 1200 RPM
Airflow
50 CFM
Static Pressure
1.1 mm H2O
Voltage / Current
12 V / 0.1 A
Bearing
Fluid Dynamic Bearing
Noise Level
20.5 dBA
Connector
4-pin PWM
MTTF
> 150,000 hours

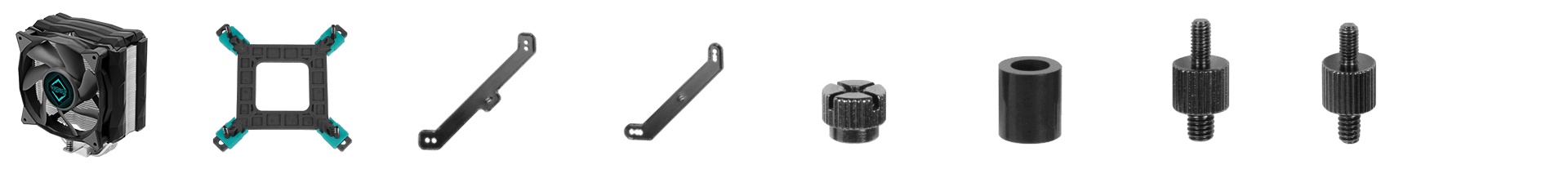

Box Content
