Description

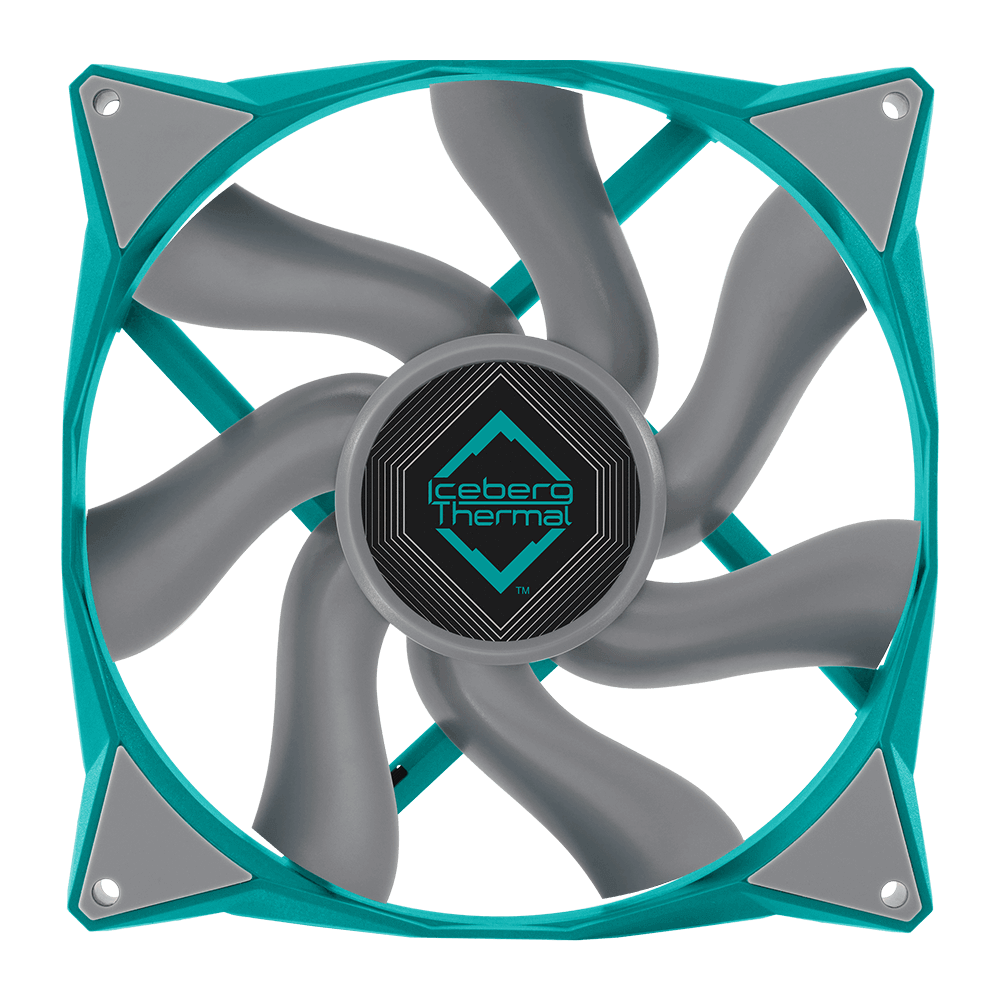

“Extra is always better than less, and that’s exactly what we thought of when we designed the high-performing IceGALE® Xtra 140 mm fan”

Color Options

$0.00

Color
This option is required
Clear selection

Rigid Brass Housing +
Dual Ball Bearing = Better Lifetime

IceGALE 140 Feature01

This fan boasts a rigid brass housing that provides a reliable product, along with dual ball bearings within the brass housing to extend the lifecycle of the fan. When you put the two together, you have a quality and reliable fan that will last you a long time.

IceGALE 140 Feature01

Rigid Brass Housing +
Dual Ball Bearing = Better Lifetime

This fan boasts a rigid brass housing that provides a reliable product, along with dual ball bearings within the brass housing to extend the lifecycle of the fan. When you put the two together, you have a quality and reliable fan that will last you a long time.

Speeds Up to 2500 RPM

With a range from 500 RPM to 2500 RPM, this fan gives you the range to perform at a high-level with as little noise as possible.

Automatic START/STOP Function

Creates a quiet environment and reduces power consumption, decreasing heat, to create a more comfortable work/play experience. When the fan is in off mode it goes silent, until the PWM duty cycle reaches 21% loading.

IceGALE 140 Feature02
Asset 5

Two-Plane Balance
is Better Than One

Like any other IceGALE® fan from Iceberg Thermal, this fan comes equipped with two-plane balance to ensure stability in your fan.

Picking Up
Bad Vibrations?

Our fans are designed with anti-vibration pads on the outer corners of the fans to absorb and eliminate vibrations so that your user experience is enhanced in a quiet environment.

Airflow Like No Other!

The IceGALE® Xtra gives you that Xtra airflow in your PC with a whopping 169 CFM! This fan will turn your PC into an Iceberg with how cool it is.

Xtra, Xtra, read all about it!

Xtra speed for all your needs
Name Reviews

Specifications

Product Number

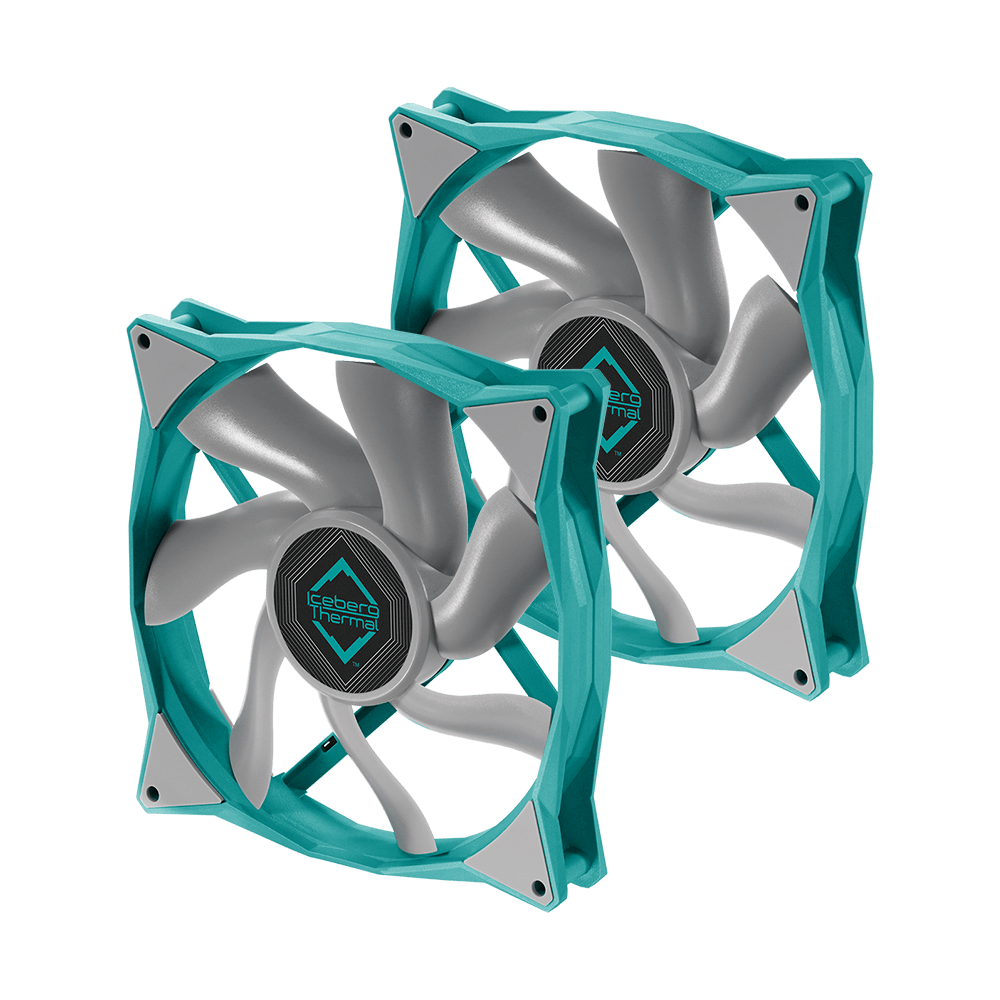

Teal
ICEGALE14X-A0A (Single)

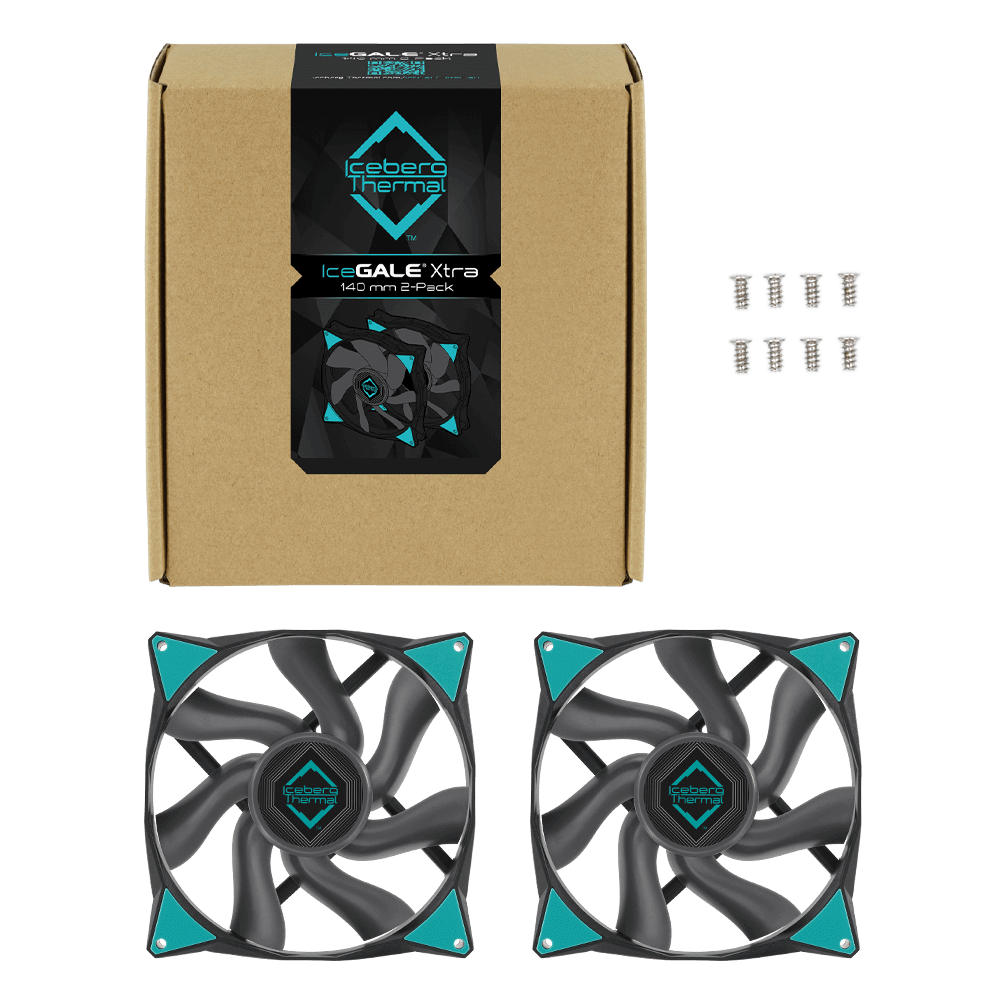

ICEGALE14X-A2A (2-Pack)

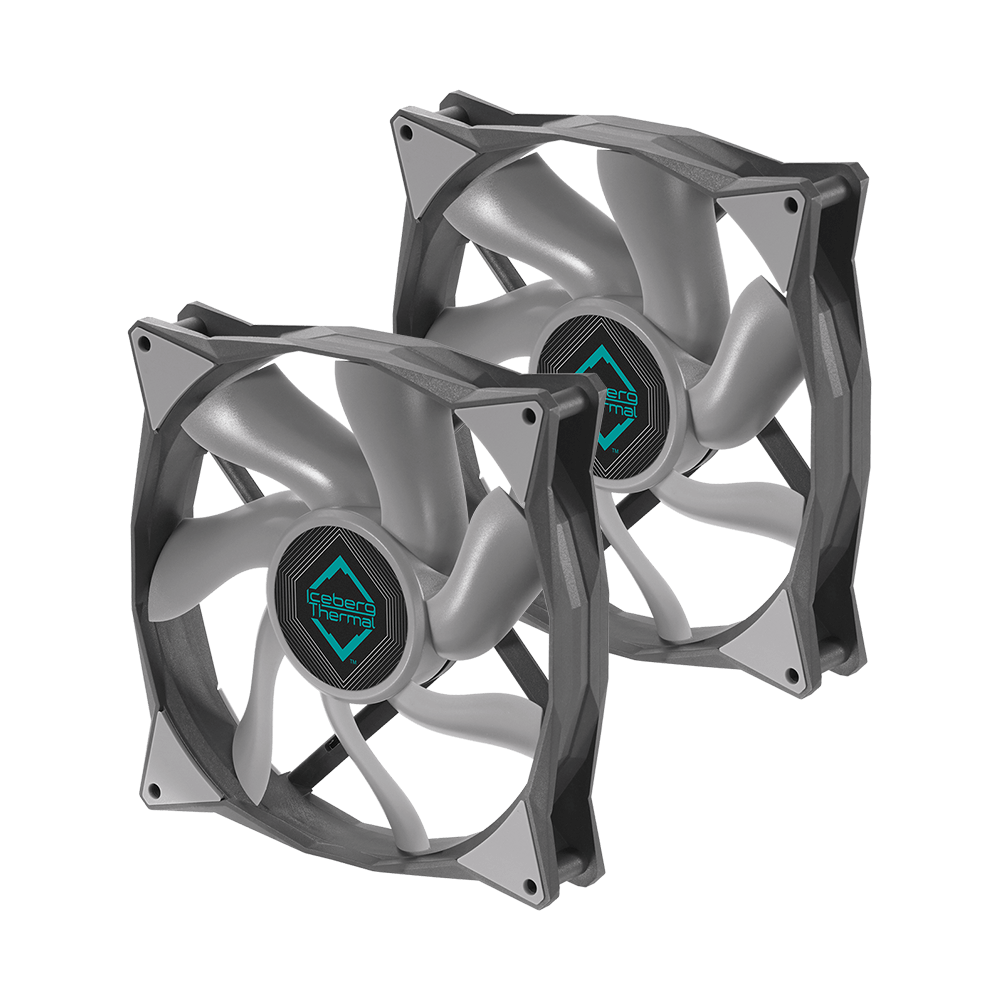

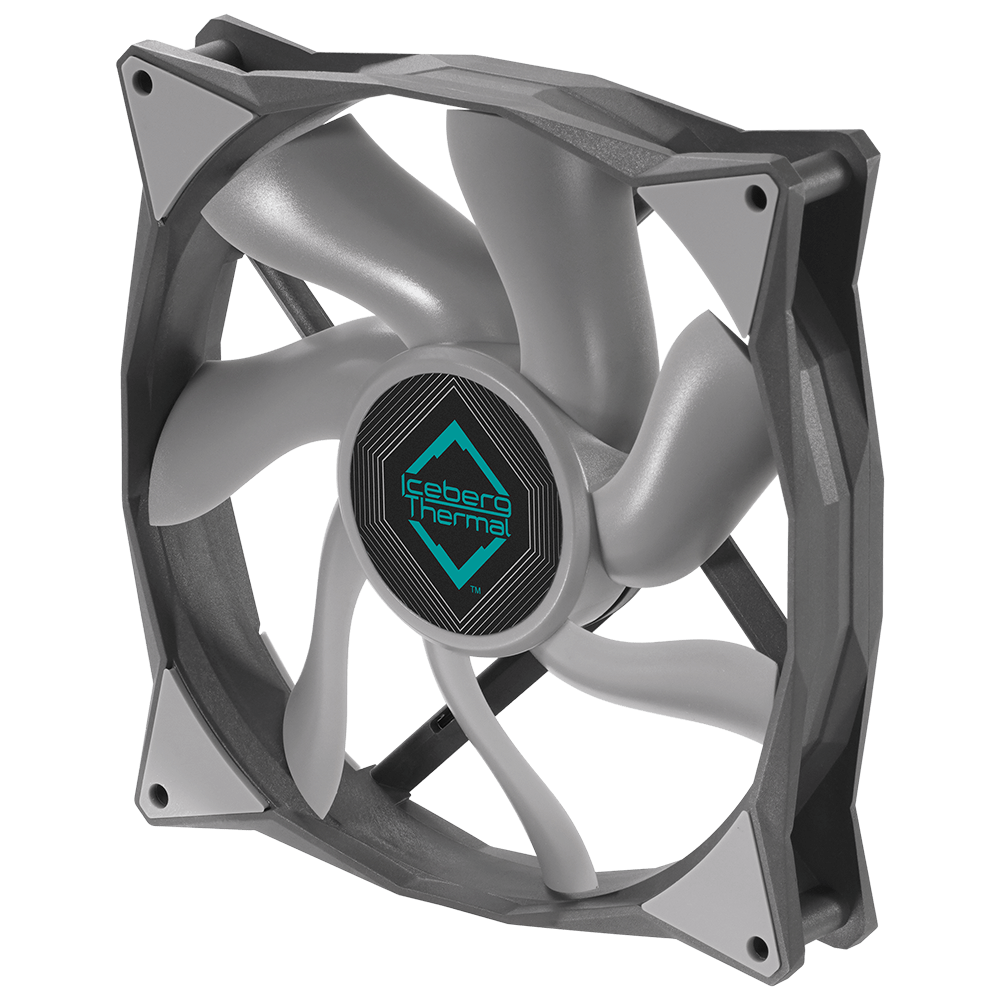

Gray
ICEGALE14X-B0A (Single)
ICEGALE14X-B2A (2-Pack)

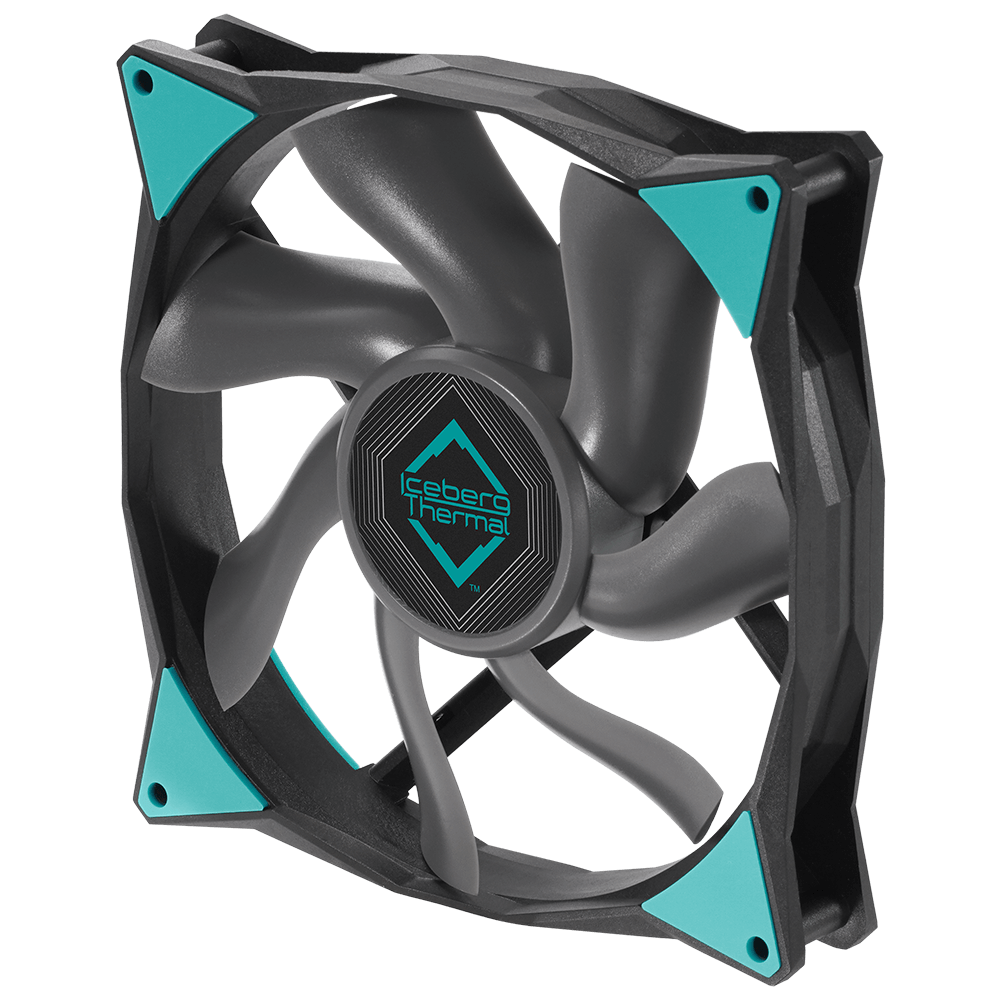

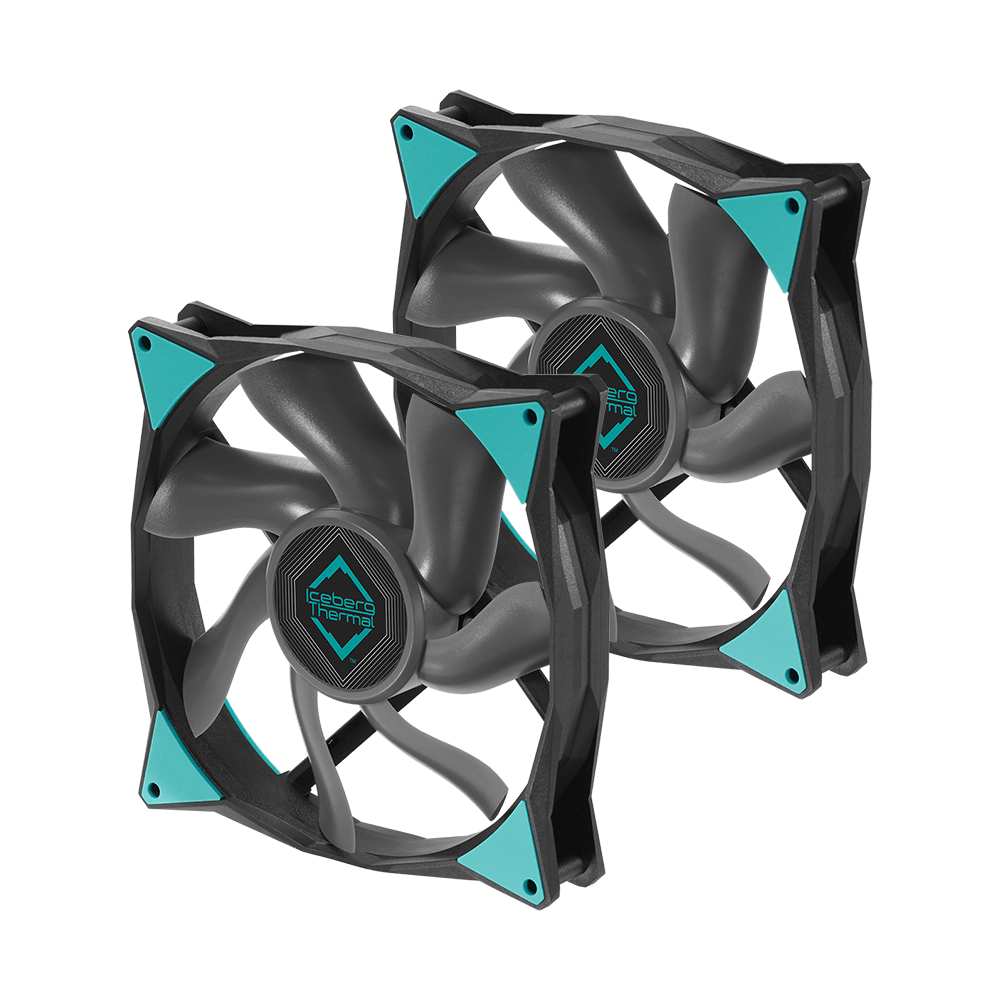

Black
ICEGALE14X-C0A (Single)
ICEGALE14X-C2A (2-Pack)
Available Color
Teal / Gray / Black
Dimensions
140 (L) x 140 (W) x 25 (H) mm
Connector
4-pin PWM
Bearing
Dual Ball Bearing
Speed
500 - 2500 RPM
Airflow
169 CFM
Noise Level
0 - 47 dBA (with Auto START/STOP)
Static Pressure
4.7 mm H2O

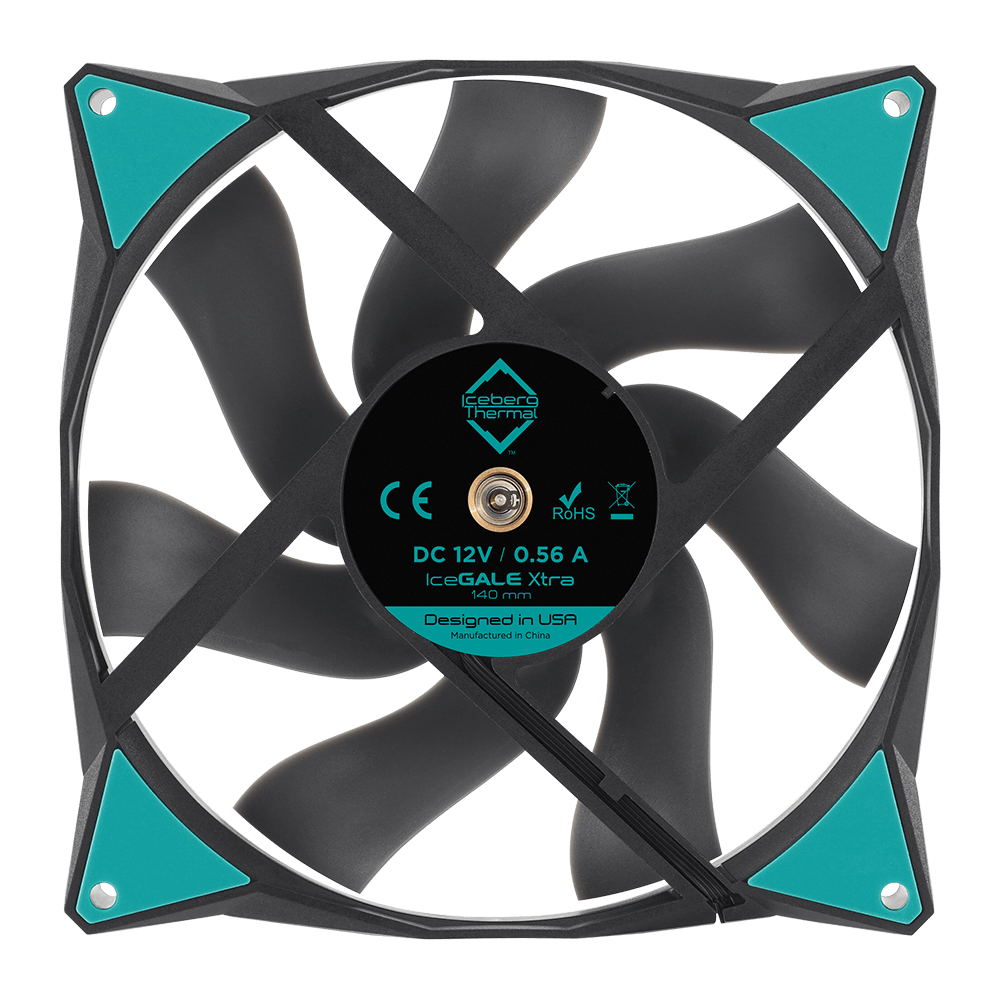

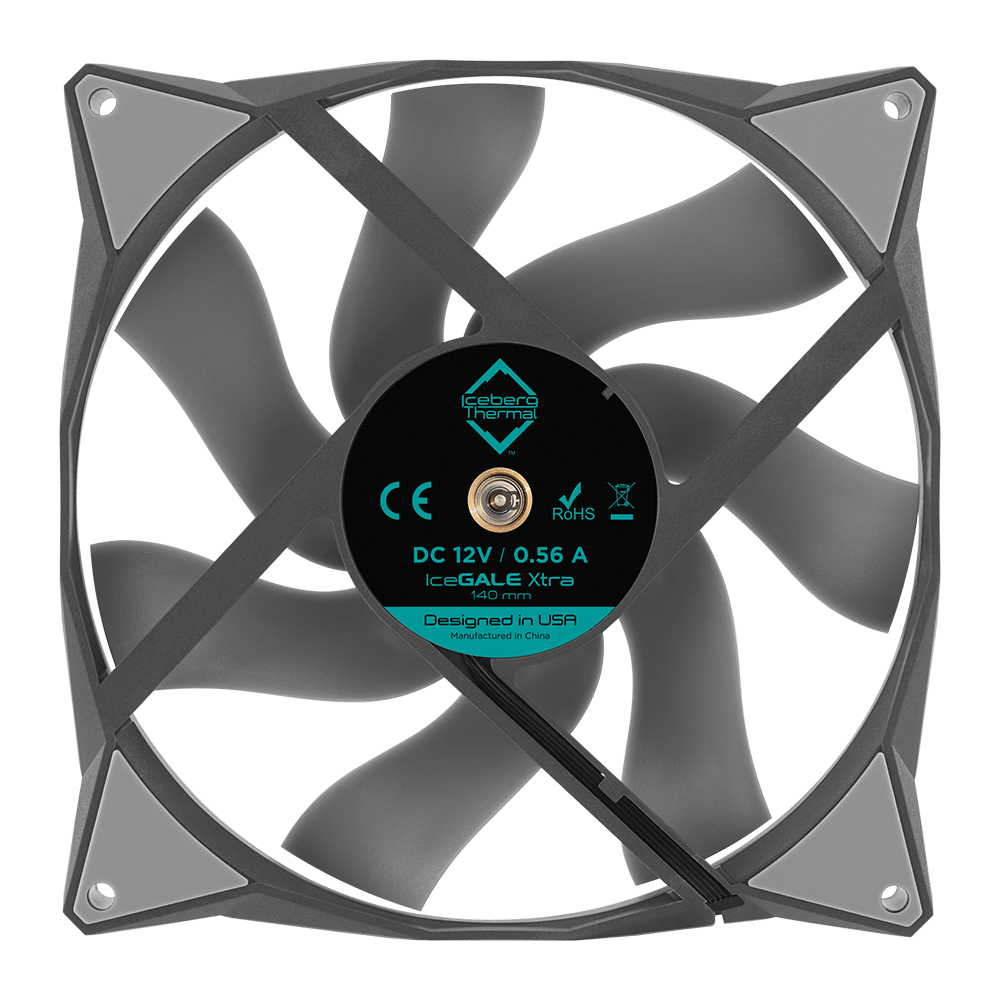

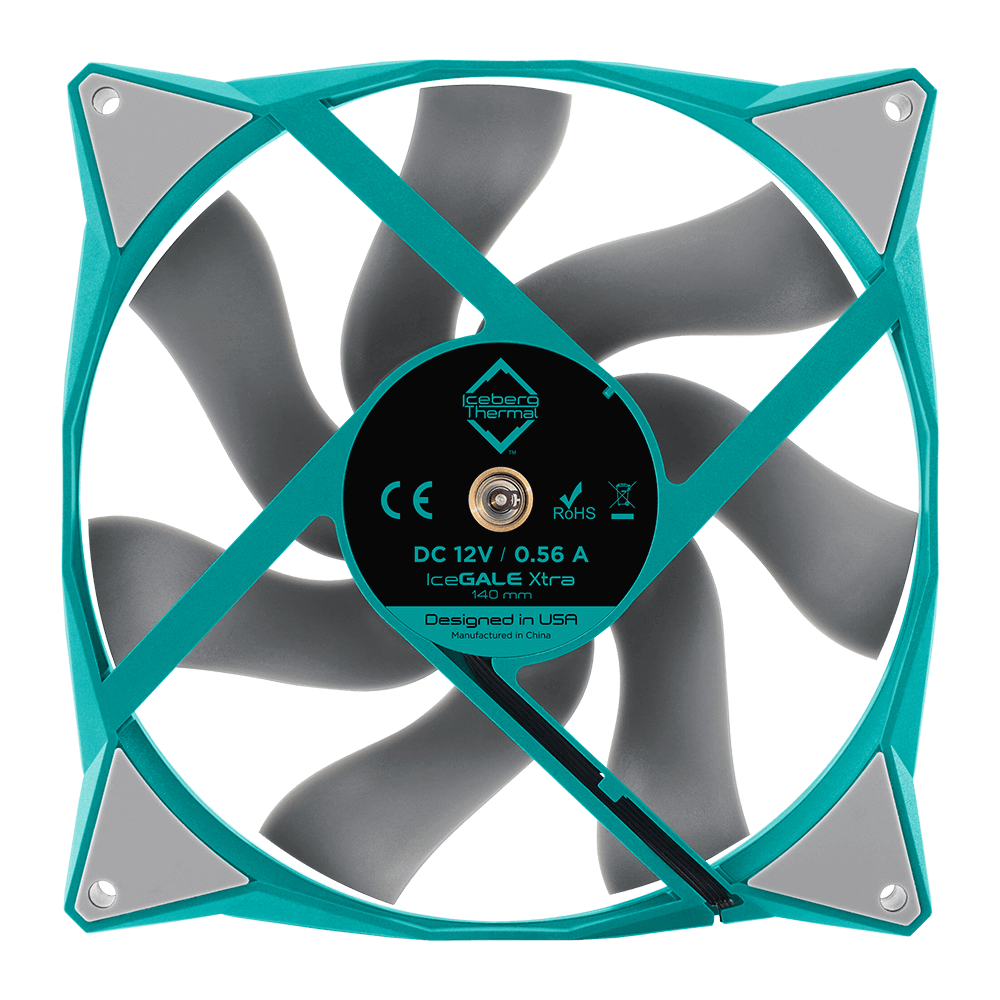

Voltage
12 V
Current
0.56 A
MTTF
> 160,000 hours
Manufacturer Warranty
6-Year

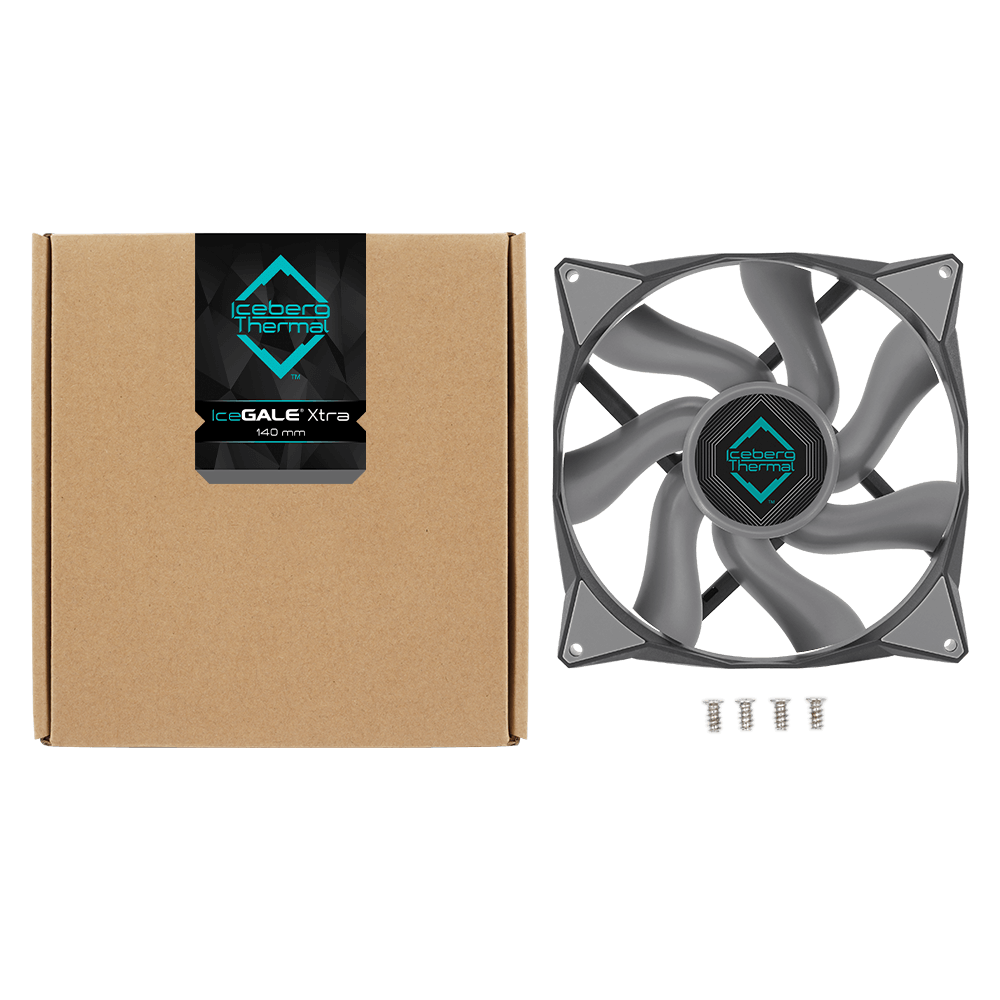

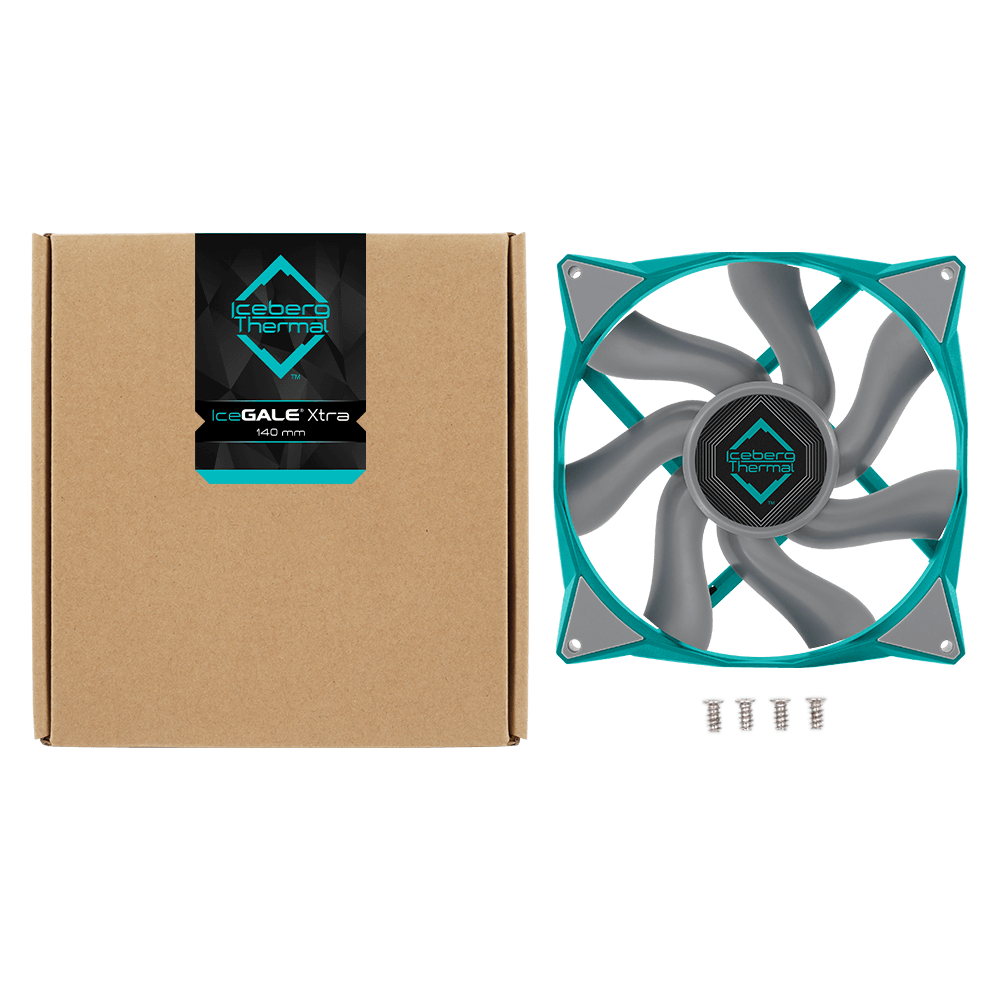

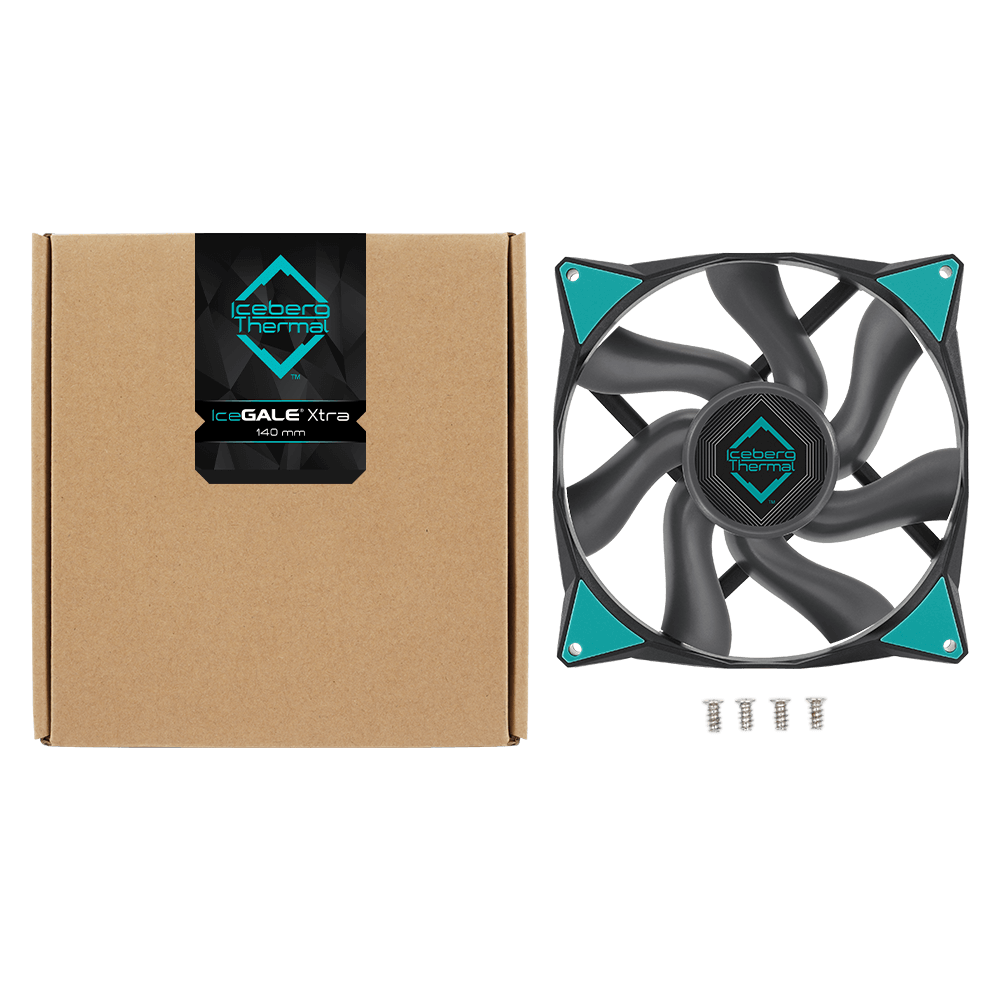

Box Content
IceGALE® Xtra 140 mm x 1
Screw x 4

Support

Additional information

Color

, ,

Feature

Lighting (Case Fan)

None

Product Type

Case Fan
